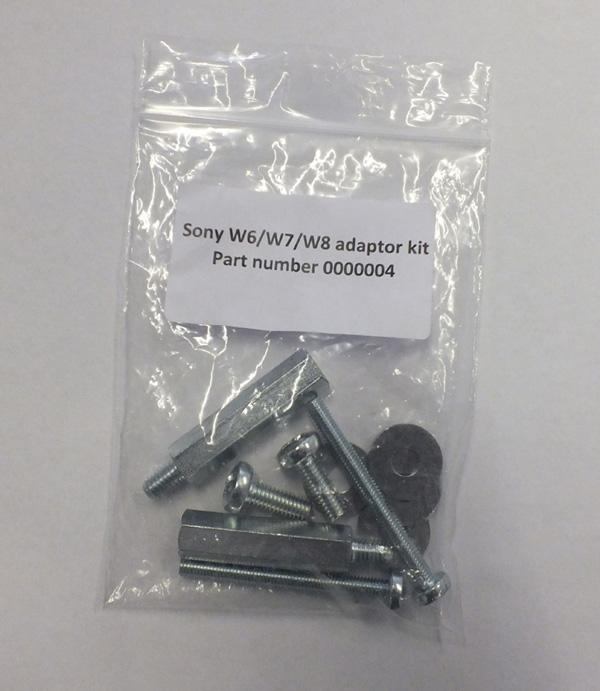

Sony W6/7/8/9 Bolt Kit

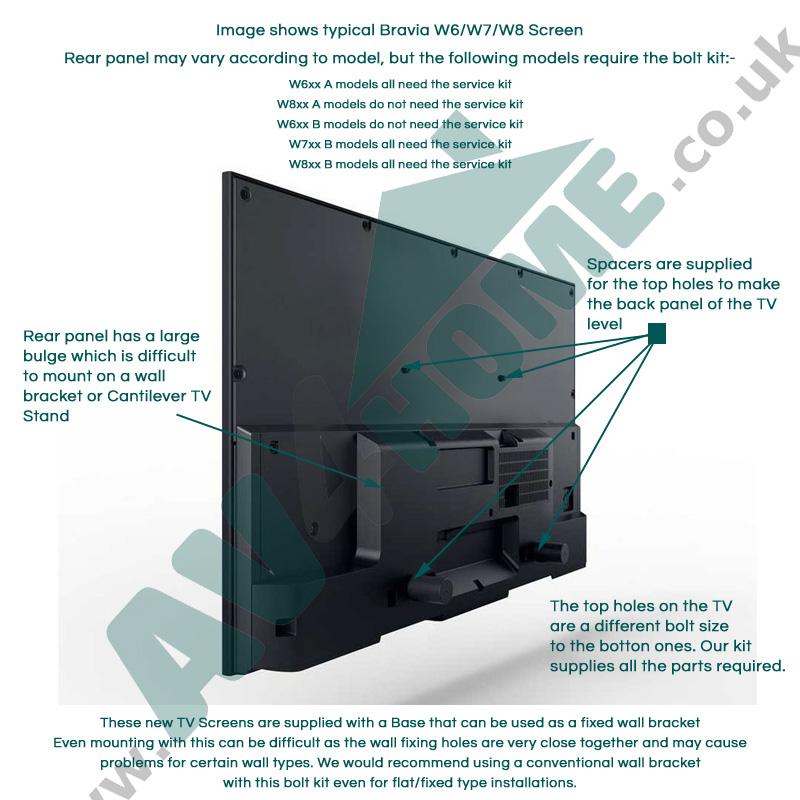

Sony has recently released the W6/W7/W8/W9 range of TV's. This new range does not have the standard VESA fixings on the rear and can cause problems when wall mounting or mounting on a cantilever TV stand. Sony have designed a system that uses the base of the TV stand that will allow flat to the wall mounting only and also has wall fixing points that are very close together, which could cause problems on certain wall types. We have produced a set of parts that will allow these screens to be mounted on VESA compatible TV Wall Brackets or cantilever TV stands. Simple, easy to follow instructions for use are included and can be viewed here
Here is a list to clarify which of the 2013 and 2014 Sony Screens are affected by this issue and require the adaptor kit
Sony 2013 KDLxx W series all end with an ‘A’… Sony 2014 W series all end with a ‘B’ (there were no W7xx models in 2013)
- KDLxxW6xxx A models all need the service kit
- KDLxxW8xxx A models do not need the service kit
- KDLxxW6xxx B models do not need the service kit
- KDLxxW7xxx B models all need the service kit
- KDLxxW8xxx B models all need the service kit
- The KDLxxW9xx range seems to have the same issue as the models above, but we do not have model specific information. If you have a W9 and are unable to mount it on a wall bracket then this kit will solve the problem.
- The Sony Wxxx C Models do not require the adaptor kit. Sony have supplied a similar kit which should be in the TV box.
Does the job
Received in good time, item as described, does the job
Expensive but required
Works great but is expensive for what it is. Limited suppliers for an older product.
fast service. got what i expected but unbelievably expensive product!!
But extremely expensive for what it is !! (4 bolts). trying to catch those desperate people who want to get their Sony Bravia on the wall.
Easy to use web site with loads of information to check if you've got correct product. Managed easily to get it right but also had the knowledge that help was only a call away too
Easy to use web site with loads of information to check if you've got correct product. Managed easily to get it right but also had the knowledge that help was only a call away too
We offer free delivery on all items on our website. Orders under £25 are subject to a £4.95 handling charge.
How to find out when your order can be delivered
On the product page there is information showing you the delivery time scale for that specific item.
Delivery Time and Service explained
All prices on our website include VAT and free shipping to UK mainland addresses on all orders. For most items this is usually a 1 to 3 working day service. Some items can be delivered using a next working day service. Delivery options will be displayed in our Secure Checkout if the service is available for the item(s) you are purchasing. We will always notify you by email when your order is dispatched and let you know what day it will be delivered.
Free Day of Choice Delivery
Most products on our website allow you to choose your preferred day for the delivery to take place. You can choose any working week day for delivery. Add the product to your basket and on the basket page, scroll down and you will see a text box to enter your preferred delivery date. If for any reason we are unable to deliver on the date you have requested, we will contact you to discuss how we can arrange a convenient delivery.
Additional Delivery Information
Please note that for many items, such as those from BDI, Spectral, Optimum International, Salamander and others, delivery times and the delivery service offered vary and such are fully detailed on the items individual webpages.
We reserve the right to request payment of any additional delivery charges that might be appropriate to Islands outside of the Mainland UK, Highlands of Scotland, Northern Ireland and EU destinations.
When delivery is requested to business premises, please ensure you provide specific details about where / how the delivery will be received & signed for; e.g. "please deliver to reception" or "please deliver to goods inward". Please also advise if any there are any limitations on your business opening hours.
If our delivery company fails to deliver your order by the expected day / time, we will of course refund any additional delivery charges that you have paid.
We cannot accept any responsibility for any consequential loss or costs that you might incur as a result of late delivery, regardless of the cause. We will of course apply all possible efforts to resolve any delay in delivery to ensure that you receive your order at the earliest possible time.
Items are shipped according to weight. Lighter items with value less than £35.00 maybe shipped by first or second class post. This is not a traceable service and maybe subject to postal delays so customers are always provided with shipping options that are more assured.
Items over £35 and up to 30Kg are usually shipped using DPD (www.dpd.co.uk). This service will provide an estimated hour time slot for delivery and you will receive notification of this allocated slot by email or text message. This service is free to UK mainland customers.
Larger, heavier items are dispatched using one of our other delivery services. Our delivery services will require a signature upon receipt for proof of delivery and can arrive between 8am and 6pm on the day of delivery. We will contact you by phone or email to arrange a convenient date for delivery and then we will usually send you an e-mail on the evening of dispatch that will confirm to you that your order has been dispatched and the delivery service used with links to tracking facilities if appropriate.
Highlands and Islands of Scotland
Deliveries to the Highlands and Islands of Scotland may be subject to a delivery surcharge and longer delivery times, we will contact you to discuss this if applicable to your order. Alternatively please contact us on 01623 672070 if you wish to discuss this prior to placing your order.
Specialist Furniture delivery services only apply as described on the specific item web page. They are designed to ensure a high level of service, co-coordinating the delivery with you to ensure you are available to take delivery. If your delivery situation is difficult, for access, parking, not at ground floor level etc. please call us at time of order to ensure we know of these difficulties. We can then ensure such difficulties do not delay your delivery.
Failed Delivery Attempts
If the delivery company cannot deliver the item because no-one is home to receive the order, they will leave a card with a contact number detailing how YOU can contact them to arrange a more convenient delivery date. You must contact the delivery company within 24 to 48 hours. If the carrier receives no contact from you they will return the package to us after a period of approximately 5 working days. This may result in extra shipping costs being incurred for the items return to us and to then arrange redelivery.
UK Overwater Service
UK overwater addresses are not included in our free delivery service, once in the checkout, click on the shipping box to select UK Overwater as your class of shipping service, this will display the shipping charge applicable to the weight of your order. This service will usually takes 1-2 working days, it includes shipping to the following locations, Northern Ireland, Scottish Isles, Sicily Isles, and the Isle of Wight. We currently do not ship to the Channel Islands.
If you place your order online or by telephone you may select the option "Reserve and collect" so that you can collect your order in person from our warehouse. Orders can be collected during business hours between the hours of 9.00am and 5.00pm Monday to Friday or on Saturday's (check website for opening hours).
Please call to confirm stock allocation before coming to collect.
Shipping to European Union (including Ireland)
This service will take approximately 3 working days to arrive and includes shipping to the following countries:- Austria, Belgium, Czech Republic, Denmark, Estonia, Finland, France, Germany, Hungary, Ireland, Italy, Latvia, Lithuania, Luxemburg, Monaco, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Sweden and Spain
In our secure checkout, select the required country and click on the next button. The checkout will calculate the shipping charge relative to country and weight of the order.
European shipping excludes furniture products and any products with glass content.
Orders over 25Kg, for example, mobile trolleys and stands - e-mail us for shipping quotation.
We charge VAT at UK rate - This is not deductable from invoice. Business customers with VAT registration can reclaim this VAT in the normal way.
All orders shipped overseas, should any import tax or duty become payable, this is the responsibility of the importer, (not usually applicable within the EU)
If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy:-
Please call us on 01623 672070 first to discuss why you may wish to return an item and to receive a returns number. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. We have a no quibble returns policy within 30 days of purchase, provided the item is in a re-saleable condition, (i.e unused, unassembled, unmarked and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return.
If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-
Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.
A) If you notify us of your wish to return an item within 14 days of the date of delivery.
It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.
For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.
For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.
PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.
B) If you notify us of your wish to return an item within 15 to 30 days after delivery
Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.
It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.
Conditions and Important Notes
ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.
Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.
Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.
This policy only applies to Consumer Customers, not to business.
Questions & AnswersAsk a Question
Hello i have a SONY KDL 43W805C TV and wanted to no if these would fit my universal wall bracket or could you tell me if the screws will fit in the holes? the holes on the tv are bigger at the top and smaller on bottom if that helps. looks forward to hearing from you, matt.
Sorry, but this kit is not suitable for use with the C versions of the W range. You should have something similar provided with the TV that will allow you to wall mount.
I have a KDL-42w653a, would I be right in saying I need two bold kits? It looks liked the hex style extensions would go in the bottom holes that are sunk back in the housing, id assume I need anoth set or a set of spacers to use the original top two mounts?
Our sony bolt kit will use the bottom and the top fixings on the TV and allow wall mounting. So you wont need two kits, just this one.
I am trying to fit my Sony KDL 42W645A to the wall and have bought a simple AVF flat to wall TV Mount (from John Lewis) which fits standard VESA sizes. Will your Sony W6/7/8/9 Bolt Kit connect the two?
If the wall bracket is universal, i.e the vertical arms will adjust to suit different vesa sizes then it will work with our Sony Bolt Kit
Hi, Is this the official Sony kit?
No, this is not an official Sony Kit. It is a kit we have developed with a major bracket manufacturer to suit the Sony W range of screens.
Hi is this suitable for model sony KDL55W805C
It is our understanding that the C models come with an adaptor kit in the box from Sony to make it wall mountable. If you do not have this kit then you can purchase ours to make it work
Hi, we have a Sony Bravia KDL-42 W829B. We bought a vesa style wall mount. The problem we have is not the depth difference in the mounting points but that the holes are not 300mm apart, they are 292mm apart (centre to centre). Is this something you have come across before and will your wall mount kit work?
Unfortunately not, you will need to get a TV bracket with a universal type mounting plate and use it with our adaptor kit to be able to wall mount your TV. A good choice of wall bracket is here - http://www.av4home.co.uk/vogels-wall-2245-dual-arm-tv-wall-bracket.html
Could you please recommend a full motion/ tilt and swivel/ cantilever bracket for use with this adapter kit and the Sony KDL42W705BBU
Please visit the following page - http://www.av4home.co.uk/vogels-flat-screen-fitter
Can you recommend a wall mount for use with this kit & a Sony Bravia KDL55W829B please?
We have several mounting options available depending on your requirements. If you are looking for a wall mount that offers extension, turn and tilt then the Vogels WALL2345 is a great choice. If you only require a flat wall bracket then the Vogels EFW8305 is a good option Search for these part numbers in the top right search box of our website.
When this bolt kit is fitted what is the vesa dimensions between the 4 points in this bolt kit?. I need to know what vesa mount i need to fit this bolt kit please
the Sony bolt kit does not dictate the dimensions between the four fixing points, this is dictated by the TV. In other words the bolt kit simply compensates for the large bulge on the back and provides a flat plane to mount on a wall bracket. You will certainly need a wall bracket that has adjustability on the horizontal and vertical spacing of the fixing arms to mount your sony.
hi im looking at buying SONY KDL50W790B and have a whalen tv stand model # wl3n1cgt-cn,will this kit allow me to use this stand and have the tv securely mounted
Yes, this adaptor kit will allow you mount your sony on such a TV Stand.
Can this bolt kit be used on a 2013 model Sony KDL-24W605A, please?
Our database shows that this bolt kit is not compatible with this screen. I cannot find any wall mounts that are suitable for use with this screen so perhaps it is not wall mountable. Can you check to see if there are any threaded wall mounting holes on the rear of the screen.
I am interested in buying the Sony KDL32W706BSU and understand I need these parts to fix the TV to my existing bracket. My question is, what VESA dimensions will my bracket need to be to attach the TV? currently my bracket is only 100 x 100, so I'm guessing I will need at least an adapter plate upto 200 x 200 too as well as these bolts.
Firstly - are you sure your wall mount is rated for a 32inch screen - just check this to be sure.
Is this an alternative to the SU-wa1? what VESA spacing does this make the TV?
Yes, this is an alternative solution. It means that you can fix the screen onto a wall mount using ALL four of the screens rear fixings. It does not change the mounting hole spacing. The best kind of wall mount to use is one that has two vertical arms. Those with flat plates and fixed VESA spacings are not always the best choice for these Sony screens - some models have connection points where cable access can be very difficult with a flat plate mounting.
Will this kit allow me to use an AVF Ultra Multi Position TV Wall Mount (Product code: GL404) with a 42" Sony Bravia KDL42W7 LED HD TV?
Yes the kit is needed to mount your screen. We cannot comment on the compatibility of the mount you mention as we do not sell or know this brand in detail.
So, just to confirm, will this bolt kit allow you to use any VESA compatible bracket? Such as a Vogels Thin 205?
Yes, that is exactly the case.
I'm thinking of buying this, but wondering if there are instructions someplace/coming with the product showing how to attach this to the television and wall bracket.
Full instructions for use are included with the product.
