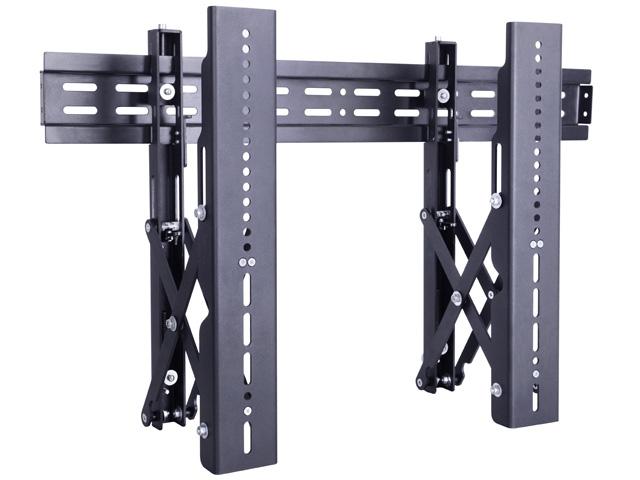

Multibrackets PUSH0513 Recessed Push to Release TV Wall Bracket

inc VAT £199.00
Maximum quantity available reached.
Sku: PUSH0513
deliverypromise
Product Description

Wall mounting TV screens within a recess is becoming more popular day by day, but recessing TV screens creates a problem in how to access the rear of the screen to change or add new cables. The PUSH0513 solves this problem. The Push in pop out feature gives easy-access to any display for quick serviceability.

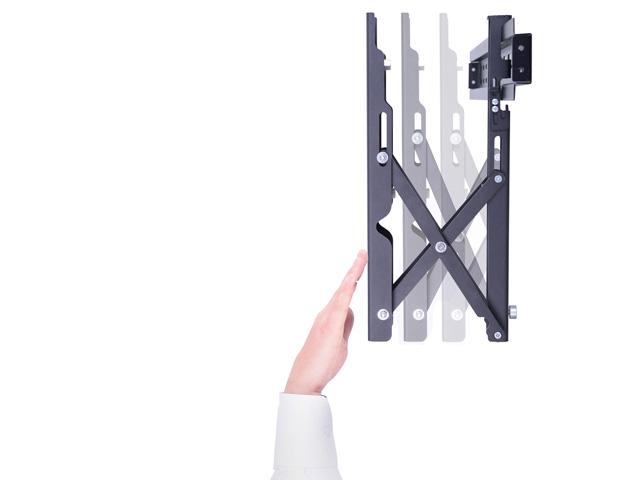

Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished. When the bracket is closed, the screen is held very close to the wall at 60mm, when open, the bracket can extend the screen away from the wall up to 202mm

Highlights

  • Create almost any Video Wall configurations imaginable
  • Ideal for recessed areas or where there is a surround around the whole video wall blocking access
  • Designed to create a fast, simple and seamless installation
  • Push in Pop out for easy access and after service
  • Simple Fine tuning for post-installations
  • Easy lateral shifts for post-installation (slide the screen/ screens apart or together for perfect alignment)
  • Create rows of screens 1x2, 1x3, 1x4 or walls 2x2, 3x3 or larger



Specification

  • For screen size: 37-70"

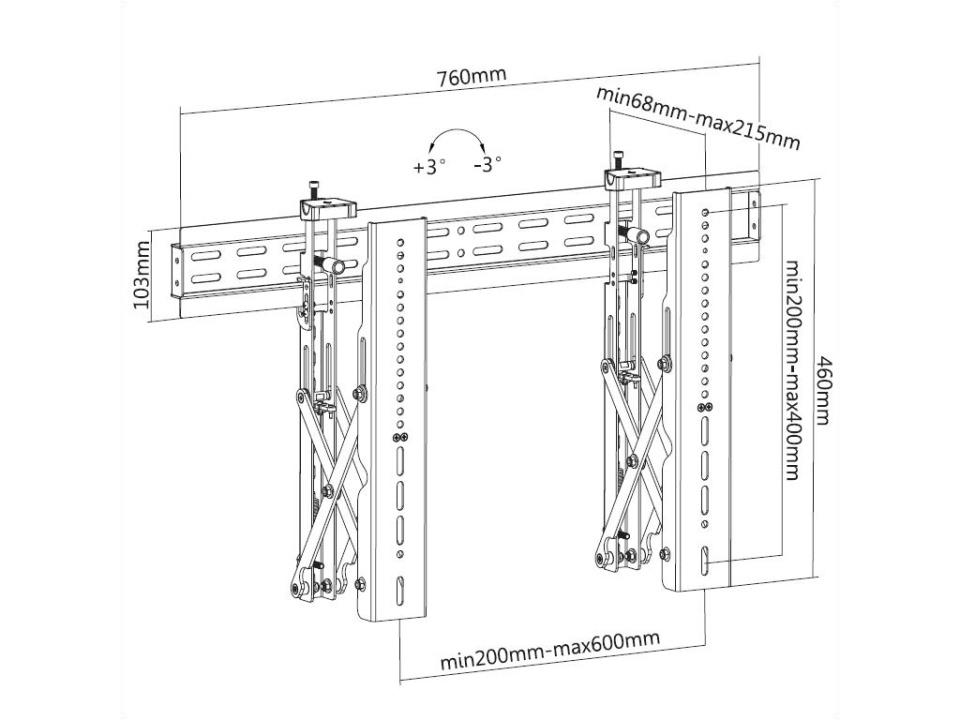

  • VESA standard: 200x200, 300x300, 400x200, 300x300, 400x400, 600x400 (no 200x100 VESA see technical drawing for details)
  • Article No: 7 350 073 730 513
  • Colour: Black
  • Max load: 40Kg
  • Weight: 6 kg
  • Size in mm: 760x460

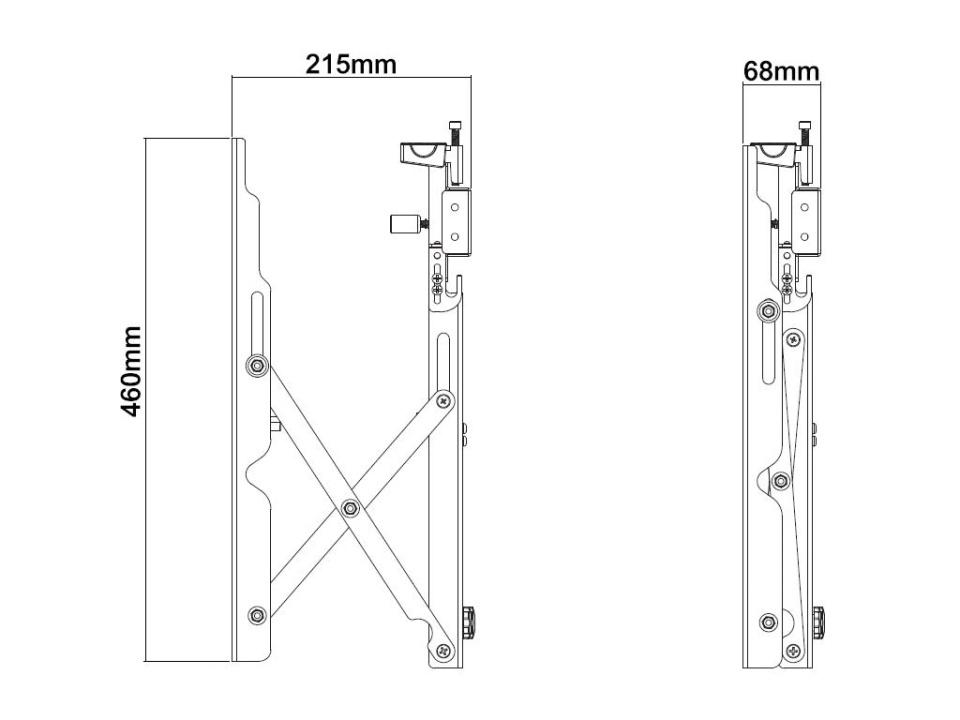

  • Distance from wall when compressed - 60mm
  • Distance from wall when expanded - 202mm
  • Warranty: 1 year



Coronavirus (Covid-19) Information for Customers

As a result of the on-going Coronavirus (Covid-19) outbreak and based on current available advice, we are making some changes to the way we work to protect both our employees and customers. This page will be updated to reflect our current service availability as the situation progresses.

Dispatch and Deliveries
We will continue to dispatch orders as normal. This includes arranged delivery services. We do not anticipate any dispatches will be affected at this time



Free UK Mainland Delivery

We offer free delivery on all items on our website. Orders placed before 2pm on a weekday can be delivered on a FREE Next Working Day service. You will be able to select the delivery options in our secure checkout. See information below regarding choosing a day for delivery.



How to find out when your order can be delivered
At the top of the page above the price there is information showing you the delivery time scale for that specific item.



Tracking my order
Tracking details will be emailed to you once dispatched so you can track the delivery of your order



Free Day of Choice Delivery
Most products on our website allow you to choose your preferred day for the delivery to take place. You can choose any working week day for delivery. Add the product to your basket and on the basket page, scroll down and you will see a text box to enter your preferred delivery date. You will still see the default delivery options in the checkout, but we will use your preferred delivery date rather than the delivery option selected on your order. If for any reason we are unable to deliver on the date you have requested, we will contact you to discuss how we can arrange a convenient delivery.

When delivery is requested to business premises, please ensure you provide specific details about where / how the delivery will be received & signed for; e.g. "please deliver to reception" or "please deliver to goods inward". Please also advise if any there are any limitations on your business opening hours.

If our delivery company fails to deliver your order by the expected day / time, we will of course refund any additional delivery charges that you have paid.

We cannot accept any responsibility for any consequential loss or costs that you might incur as a result of late delivery, regardless of the cause. We will of course apply all possible efforts to resolve any delay in delivery to ensure that you receive your order at the earliest possible time.

If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-

Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.



A) If you notify us of your wish to return an item within 14 days of the date of delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.



B) If you notify us of your wish to return an item within 15 to 30 days after delivery

Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.



Conditions and Important Notes

ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.



Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.



Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.



This policy only applies to Consumer Customers, not to business.

Questions & Answers

Ask a Question
  • Can the VESA 200 BY 200 BRACKET accomodate a VESA 100 reducer bracket plate?

    Usually these plates are to increase the VESA size, so you may have an issue with threads on threads when trying to reduce the VESA size.

  • Why wont my bracket pop back out its now stuck on wall

    There is a plastic spacer part at the top of each of the vertical arms. Remove this and it should be easier to pop-out.

  • Would this hold a Iilama ProLite TF5537MSC-B2AG 55'' both landscape and portrait mounted? Thank you

    This model of screen weighs 45.7Kg which is over the maximum weight limit for the bracket.

  • Does this bracket allow the tv to be tilted slightly to?

    No, there is no tilt on this bracket

  • would this hold LG OLED65B6V Smart 4K Ultra HD HDR 65" OLED,the Vesa is 300 x 200 ?

    Yes, the PUSH0513 is compatible with this screen.

  • Would this hold a Sony KD-55X9305C? Max load states 40kg and the KD-55X9305C is listed as 37.3kg but, does the ma load include the weight of the bracket (6kg)?

    The max load of 40Kg is relative to the TV only. It will have been tested to higher loads in order to pass certification. This bracket will suit this Sony screen
