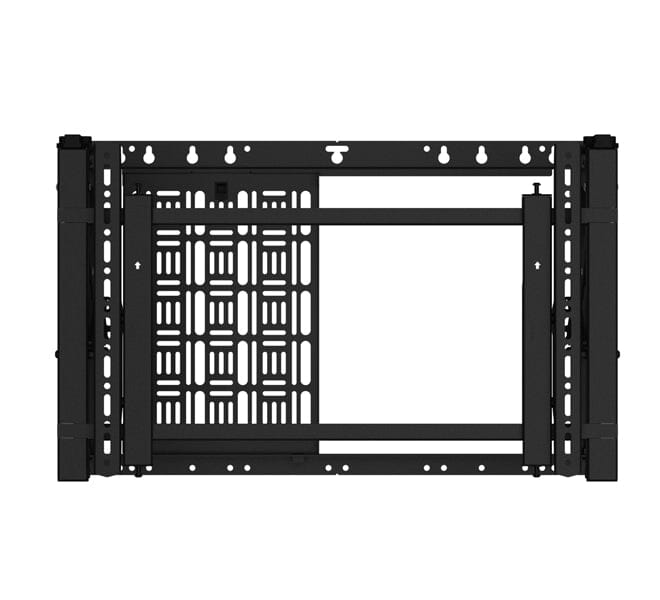

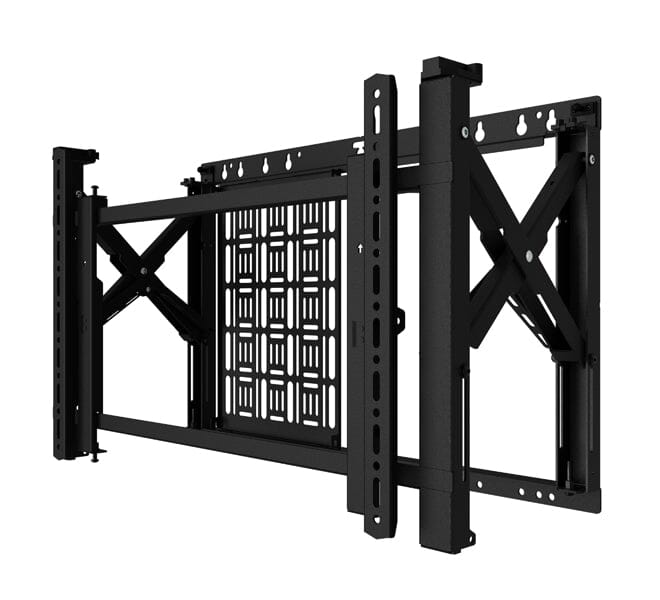

B-Tech BT7896 Recessed Pop Out TV Bracket with AV Storage Tray

£275.00 £299.00
including VAT and Free UK Mainland Delivery.
B-Tech  |  SKU: BT7896

Easy Returns

If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-

Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.

A) If you notify us of your wish to return an item within 14 days of the date of delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.

B) If you notify us of your wish to return an item within 15 to 30 days after delivery

Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.

Conditions and Important Notes

ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.

Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.

Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.

This policy only applies to Consumer Customers, not to business.

Description

The B-Tech BT7896 is a premium pull-out wall mount, engineered to deliver both a sleek “installed-into-wall” aesthetic and flexible full-service access — perfect for home theatres, boardrooms, or any environment where a clean, professional setup matters. Suitable for use with TV's up to 75", max weight 70Kg.

Key Features

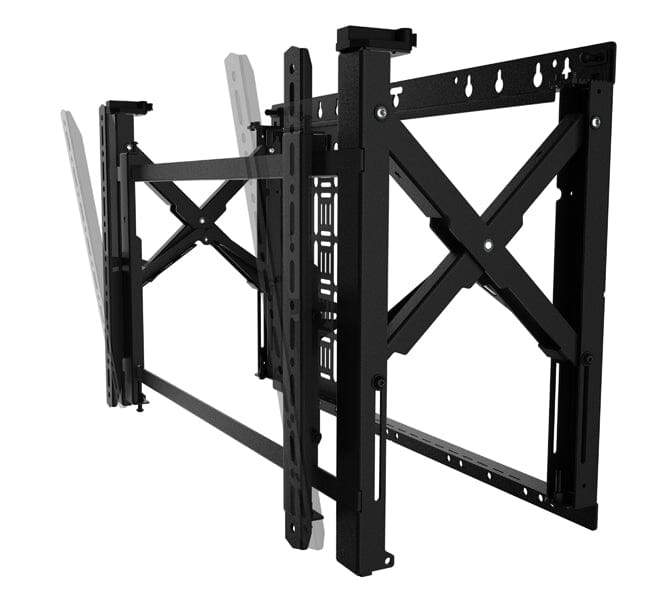

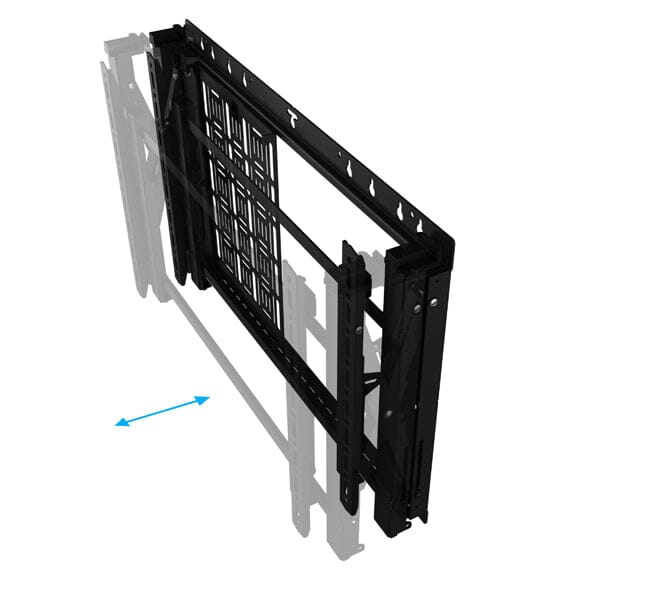

Pull-out functionality — Enjoy easy and secure access to the rear of your screen without removing it. The mount’s arms feature a push-to-release mechanism, letting you simply pull the screen out from the wall for maintenance, cable changes, or AV reconfiguration.

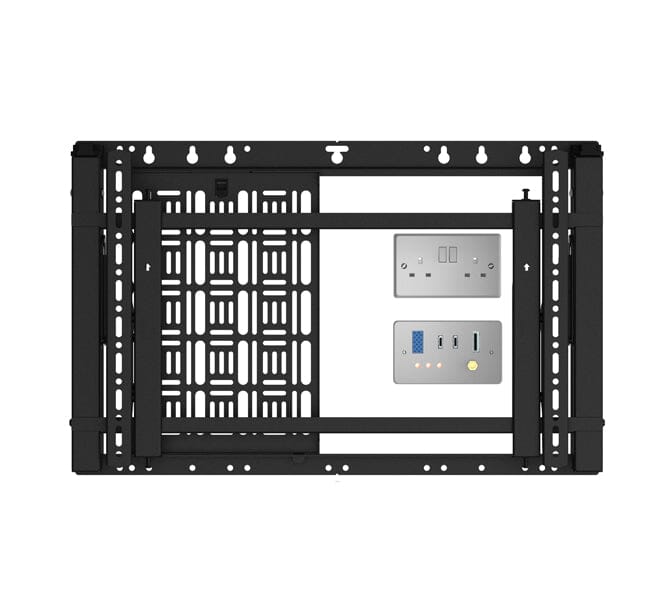

Integrated AV storage tray — The built-in AV tray provides a concealed space for media players, set-top boxes, power supplies, or AV accessories. It can be repositioned within the mount or relocated to the side to clear mains sockets and cable inputs.

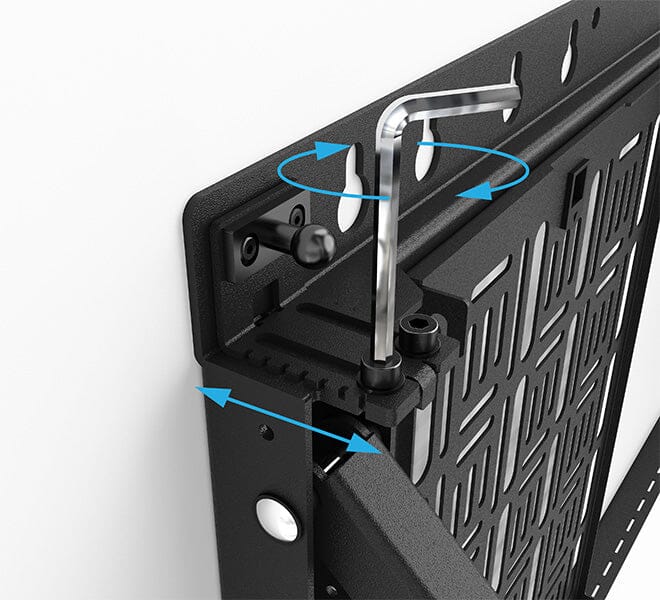

Lockable depth adjustment & slim profile — With a low-profile, recessed design and adjustable depth, this mount suits installations in shallow wall cavities or tight spaces. Lockable adjustment ensures the screen sits flush and secure.

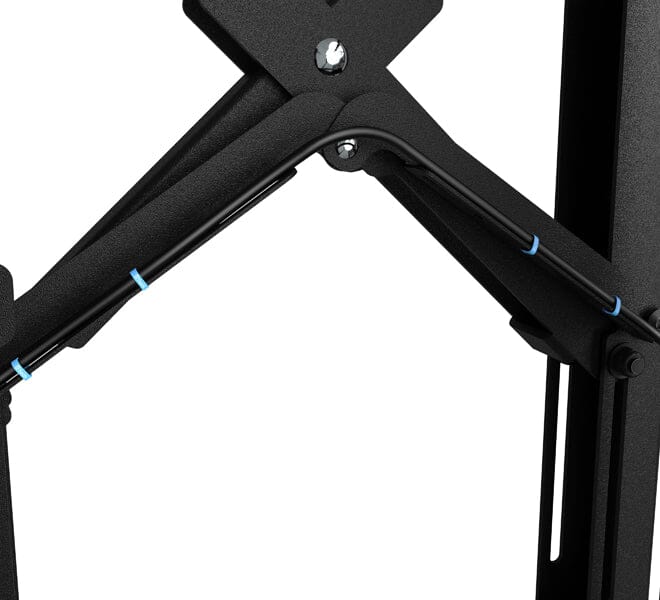

Neat cable management & professional finish — The design supports tidy cable routing and a clutter-free install — particularly useful when hiding cables behind a wall-mounted screen.

Why Choose BT7896

The BT7896 is ideal for anyone wanting a minimalist, built-in look without sacrificing practicality. Its pull-out feature and integrated storage tray mean you can both hide and access your AV devices with ease — an excellent choice for clean, modern living rooms or professional AV installations. Whether you’re installing a TV or a digital signage display, this mount delivers on flexibility, aesthetics and convenience.

  • Push-to-release arms provide simple service access without screen removal
  • Lockable depth adjustment ensures a precise fit in recesses of different sizes
  • Integrated AV tray can be repositioned to the side to of the mount to avoid obstructions (Max load of tray increases to 10kg)

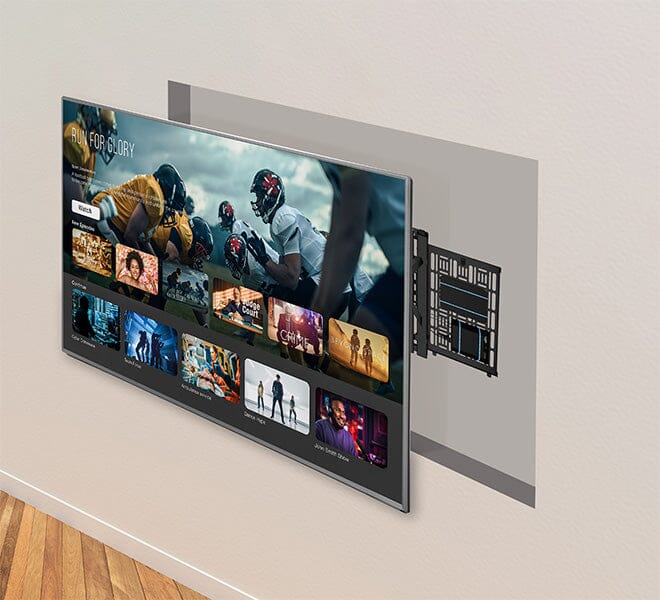

  • Pull-out function ideal for recess mounting
  • Lockable in the closed position and compatible with a padlock for added security
    (padlock not included)
  • Quick release AV tray (when mounted inside the wall plate)
  • Additional Storage Tray (BT7896-Tray) available separately
  • Adjustable depth, tilt, and swivel for precise screen positioning
  • Keyhole wall mounting for fast, hook-on installation
  • Includes cable straps and routing for tidy cable management
  • Drilling template included
  • 100% plastic-free packaging
  • Max recommended screen size: 75" (190cm)
  • Max screen load: 70kg
  • VESA® & non-VESA fixings: up to 600 x 400mm
  • Tilt: 2° upward / 12° downward
  • Depth adjustment: +73.5mm
  • Distance from wall closed flat: Min: 91mm - Max: 164mm
  • Distance from wall closed with full-tilt: Min: 161mm - Max: 234mm
  • Distance from wall popped out: 301mm flat - 371mm full-tilt
  • Max tray load when fitted into the mount: 5kg
  • Max tray load when wall mounted to the side of mount: 10kg
  • Max equipment dimensions (mounted inside): H: 392mm x W: 271mm x D: 31mm - 104.5mm
  • Max equipment dimensions (wall mounted on the side): H: 392mm x W: 271mm x D: 82mm - 155.5mm
  • Storage tray dimensions: H: 407mm W: 274mm
  • Colour: Black
