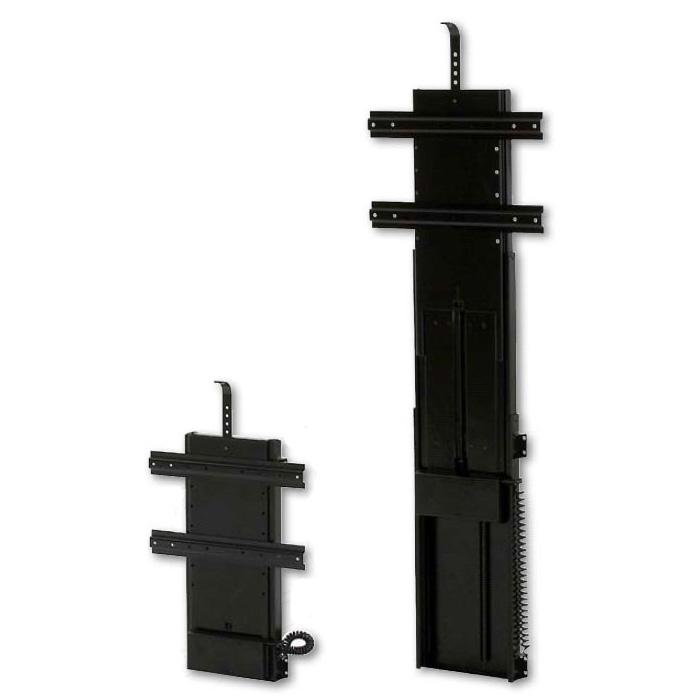

AV4-LF700 Flat Screen Lifting Mechanism 700mm Lift / Travel

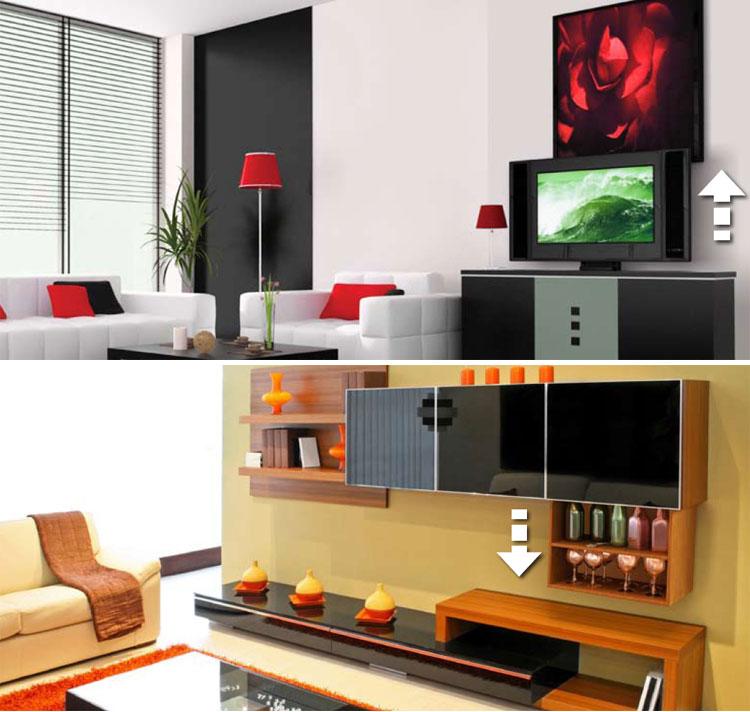

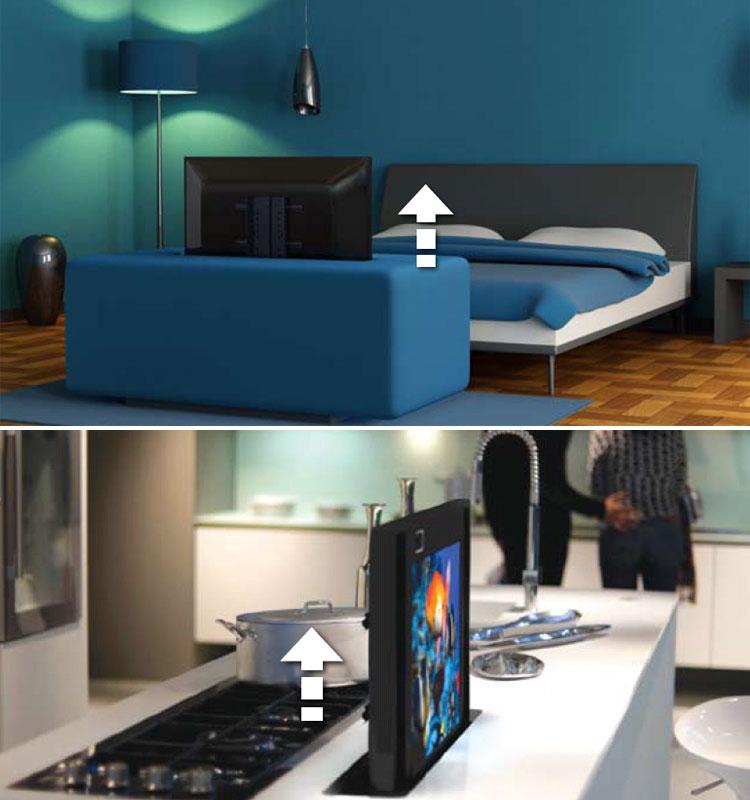

With the LF700 TV Lift you can hide your TV away in a TV Cabinet, behind a taller cupboard, a bed-end or even above your ceiling. With this lifting mechanism you can have your TV appear whenever you need it, just at the press of a button!.
Suitable for lifting or lowering, the LF700 is simple to install and with its "plug and play" connectivity it can installed by DIY enthusiasts and professional installers and cabinet makers alike. The lift includes a lid lifter bar which can be fitted if required. We are always pleased to discuss individual projects and may be able to offer suggestions on construction and integration that we have learned over many years of working with TV Lift mechanisms.
The LF700 TV lift has 700mm of travel. This means it is suitable for LED/LCD/plasma screens that have an overall height of approximately 650mm, (allowing 50mm for clearances and thickness of cabinet top. It is therefore suitable for up to 46 inches TV's, subject to weight and provided the TV overall height without its stand and the clearances you require for your project / construction total less than 700mm.
The lift includes a manual switch to operate it and a Radio Frequency (RF) remote control that allows easy control of the lift, no line of sight between remote and receiver is required and the working range of this remote is up to 15m.
The LF700 TV lift is capable of raising an LED, LCD or Plasma screen of up to 65 kg, and if inverted to "lower" a TV it can handle screens up to 29Kg, at a touch of a button. The Maximum peak load is 100Kg; this includes the instantaneous load applied to the lift at the point of opening the lid of a cabinet. Its maximum travel is 700mm. (Consider the overall height of your screens and add allowance for thickness of cabinet lid etc when deciding if you need a lift with a longer stroke).
The LF700 TV lift features an important safety feature in the anti-squeeze function. If the moving parts of the lift or the TV mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse. The pressure given before reversing is equal to the weight of the TV that is mounted.
The LF700 TV lift can also be inverted and used to lower a TV screen (Max Weight upto 29Kg) out of the ceiling or other void. [Important Information about Safety and Installation]
This TV lift include an RF remote control, however if you would prefer an IR remote control instead, there is an upgrade available to an Infra Red (IR) remote control. The IR remote controller options is useful if you are controlling the lift via a programmable multi-device remote control with learning capability or a home automation system such as Crestron, AMX etc Please call us on 01623 672070 if you are interested in this option.
Here are a few key factors to consider that distinguish this TV lift from other lifts.
- Fits VESA 400x400, 400x300, 400x200, 400x100, 300x300, 200x200, 200x100 and 100x100
- Unloaded Lifting speed: 28mm per second (Full extension in approx 25-30 seconds).
- Unique stability system.
- Maximum TV weight 65Kg (29Kg when used inverted) [Important Information about Safety and Installation]
- Maximum peak load of 100Kg
- Power supply: 80 W AC SMPS Power Transformer - Input 200V-240V - Output 30V
- With design, engineering and quality inspection done in Denmark, the volume manufacture is in China - hence its very competitive pricing.
- The electronics and Wireless remote are hard to beat.
- Optional IR Remote Control available

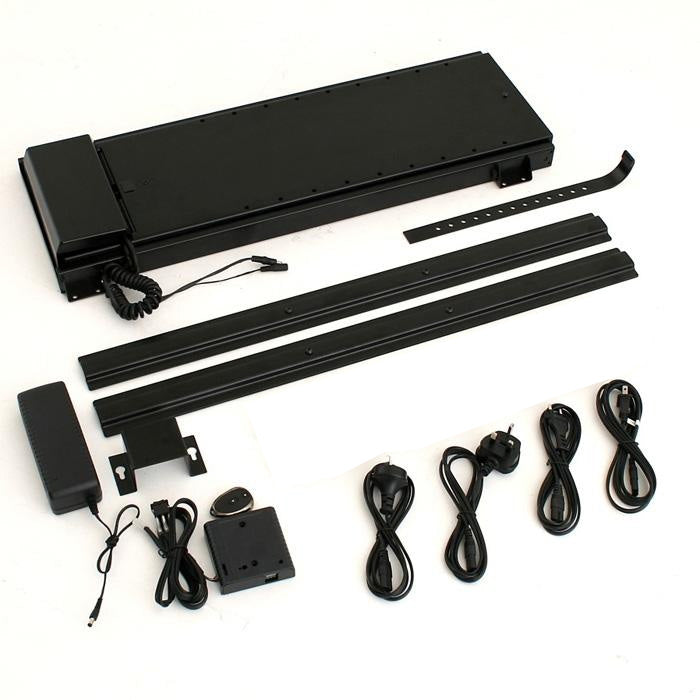

- Modular construction with motor, Power Supply and electronic module, (with included optional manual switch), all plug-in connections.
- Very easy to install
- With over 10 years of volume production, this manufacturer has experience and know-how that will ensure peace of mind on reliability.
- Visit our blog on suggestions for building a TV lift cabinet
The AV4-LF700 (also known as the Venset TS700A) can be used to automate many items around the house in addition to its function as a TV-lift. A wide array of applications throughout the home and office are possible as well, particularly in the area of developing innovative solutions for those with physical disabilities.

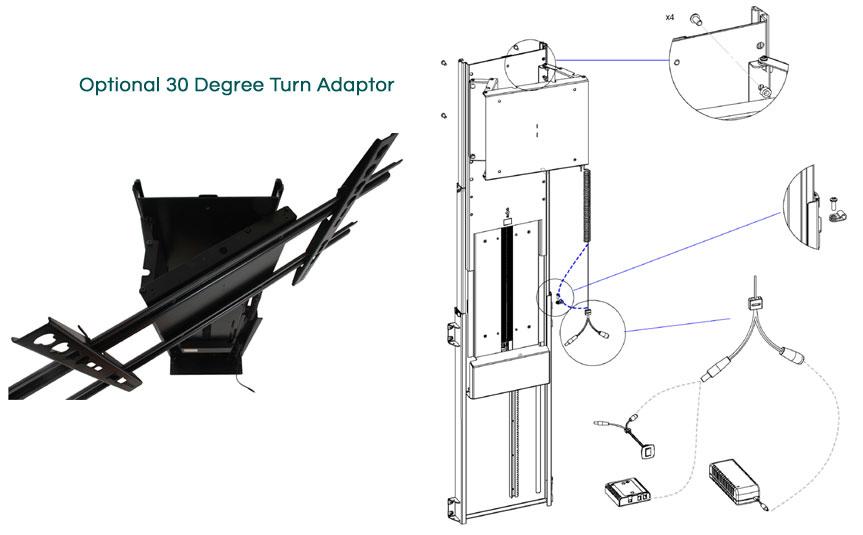

Optional 30° Swivel Adaptor
Select this option if you would like to be able to turn the screen up to 30 degrees left or right. The adaptor has a clever cut off switch included so that the lift will only operate when the screen is in a safe position to be operated. The swivel adaptor is 30mm deep when closed and 265mm when extended. The swivel adaptor can be used when the lift is inverted.The swivel adaptor is suitable for use with TV's up to 15Kg. The swivel adaptor also limits the VESA compatibility to 200x200, 300x200 and 400x200mm, give us a call on 01623 672070 if your screen has a different mounting pattern.
Optional Power Cut Off Lid Switch
Select this option to add the power cut off lid switch to your order. This simple to install switch will cut the power to the TV when the switch is closed. This is useful when installing the lift in a cabinet as the TV cannot be accidentally left on inside the cabinet. Once the switch is released the power is automatically returned to the TV.
Universal Screen fixing kit
NO screen fixing bolts are included with this mount so this pack saves you having to search for the ones you need. Contains full range of bolts and spacers to ensure easy mounting of a wide range of screens - particularly useful for Sony Bravia and Panasonic Viera range screens that often require longer bolts and spacers. We suggest you buy these - if you don't use them - you can return them for a refund on the option cost. See options.
Optional Floor / Ceiling Bracket [Important Information about Safety and Installation]
There is now an optional floor bracket / ceiling bracket for this TV lift. This can be used to mount the TV lift to the floor or ceiling i.e. not against a wall or in a cabinet or when the lift is not going to be mounted using the fixing holes in the rear of the TV lift. It holds the TV lift securely in place and allows mounting to a floor or ceiling through the fixing plate. This bracket can be found here.
How to find out when your order can be delivered
On the product page there is information showing you the delivery time scale for that specific item.
Items with a longer delivery time may look like the image below
Delivery Time and Service explained
All prices on our website include VAT and free shipping to UK mainland addresses on all orders. For most items this is usually a 1 to 3 working day service. Some items can be delivered using a next working day service. Delivery options will be displayed in our Secure Checkout if the service is available for the item(s) you are purchasing. We will always notify you by email when your order is dispatched and let you know what day it will be delivered.
Free Day of Choice Delivery
Most products on our website allow you to choose your preferred day for the delivery to take place. You can choose any working week day for delivery. Add the product to your basket and on the basket page, scroll down and you will see a text box to enter your preferred delivery date. You will still see the default delivery options in the checkout, but we will use your preferred delivery date rather than the delivery option selected on your order. If for any reason we are unable to deliver on the date you have requested, we will contact you to discuss how we can arrange a convenient delivery.
Additional Delivery Information
Please note that for many items, such as those from BDI, Spectral, Optimum International, Salamander and others, delivery times and the delivery service offered vary and such are fully detailed on the items individual webpages.
We reserve the right to request payment of any additional delivery charges that might be appropriate to Islands outside of the Mainland UK, Highlands of Scotland, Northern Ireland and EU destinations.
When delivery is requested to business premises, please ensure you provide specific details about where / how the delivery will be received & signed for; e.g. "please deliver to reception" or "please deliver to goods inward". Please also advise if any there are any limitations on your business opening hours.
If our delivery company fails to deliver your order by the expected day / time, we will of course refund any additional delivery charges that you have paid.
We cannot accept any responsibility for any consequential loss or costs that you might incur as a result of late delivery, regardless of the cause. We will of course apply all possible efforts to resolve any delay in delivery to ensure that you receive your order at the earliest possible time.
Items are shipped according to weight. Lighter items with value less than £35.00 maybe shipped by first or second class post. This is not a traceable service and maybe subject to postal delays so customers are always provided with shipping options that are more assured.
Items over £35 and up to 30Kg are usually shipped using DPD (www.dpd.co.uk). This service will provide an estimated hour time slot for delivery and you will receive notification of this allocated slot by email or text message. This service is free to UK mainland customers.
Larger, heavier items are dispatched using one of our other delivery services. Our delivery services will require a signature upon receipt for proof of delivery and can arrive between 8am and 6pm on the day of delivery. We will contact you by phone or email to arrange a convenient date for delivery and then we will usually send you an e-mail on the evening of dispatch that will confirm to you that your order has been dispatched and the delivery service used with links to tracking facilities if appropriate.
Highlands and Islands of Scotland
Deliveries to the Highlands and Islands of Scotland may be subject to a delivery surcharge and longer delivery times, we will contact you to discuss this if applicable to your order. Alternatively please contact us on 01623 672070 if you wish to discuss this prior to placing your order.
Specialist Furniture delivery services only apply as described on the specific item web page. They are designed to ensure a high level of service, co-coordinating the delivery with you to ensure you are available to take delivery. If your delivery situation is difficult, for access, parking, not at ground floor level etc. please call us at time of order to ensure we know of these difficulties. We can then ensure such difficulties do not delay your delivery.
Failed Delivery Attempts
If the delivery company cannot deliver the item because no-one is home to receive the order, they will leave a card with a contact number detailing how YOU can contact them to arrange a more convenient delivery date. You must contact the delivery company within 24 to 48 hours. If the carrier receives no contact from you they will return the package to us after a period of approximately 5 working days. This may result in extra shipping costs being incurred for the items return to us and to then arrange redelivery.
UK Overwater Service
UK overwater addresses are not included in our free delivery service, once in the checkout, click on the shipping box to select UK Overwater as your class of shipping service, this will display the shipping charge applicable to the weight of your order. This service will usually takes 1-2 working days, it includes shipping to the following locations, Northern Ireland, Scottish Isles, Sicily Isles, and the Isle of Wight. We currently do not ship to the Channel Islands.
If you place your order online or by telephone you may select the option "Reserve and collect" so that you can collect your order in person from our warehouse. Orders can be collected during business hours between the hours of 9.00am and 5.00pm Monday to Friday or on Saturday's (check website for opening hours).
Please call to confirm stock allocation before coming to collect.
Shipping to European Union (including Ireland)
We are currently unable to deliver to the EU or outside of the UK
If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy:-
Please call us on 01623 672070 first to discuss why you may wish to return an item and to receive a returns number. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. We have a no quibble returns policy within 30 days of purchase, provided the item is in a re-saleable condition, (i.e unused, unassembled, unmarked and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return.
If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-
Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.
A) If you notify us of your wish to return an item within 14 days of the date of delivery.
It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.
For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.
For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.
PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.
B) If you notify us of your wish to return an item within 15 to 30 days after delivery
Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.
It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.
Conditions and Important Notes
ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.
Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.
Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.
This policy only applies to Consumer Customers, not to business.
Questions & AnswersAsk a Question
I have a free standing cabinet (800 mm tall) in the bedroom, will this mount on the back of it with the TV facing forward?
The TV lift needs to be attached to something through the rear of the lift. You could use the optional floor bracket and fix the lift to the floor to keep it secure.
Hi, I have the lift installed but I cannot figure out how you set the maximum height setting. The only visible grommet sets the lowest travel. The instructions seem to refer to another grommet that doesn't exist?
1. Move the lift to top position and the adjustable top stop cylinder will become visible.
Can this unit be floor mounted or does it have to be fixed to a wall or unit.
This unit can be floor mounted using the optional Free Standing Floor Bracket (see options just under the price at the top of the page). Without this optional extra the unit needs fixing to a wall or unit through the rear.
can these be used off a 12v power system i.e in a motor home?
No, sorry these require 240Vac supply, they operate at 19V.

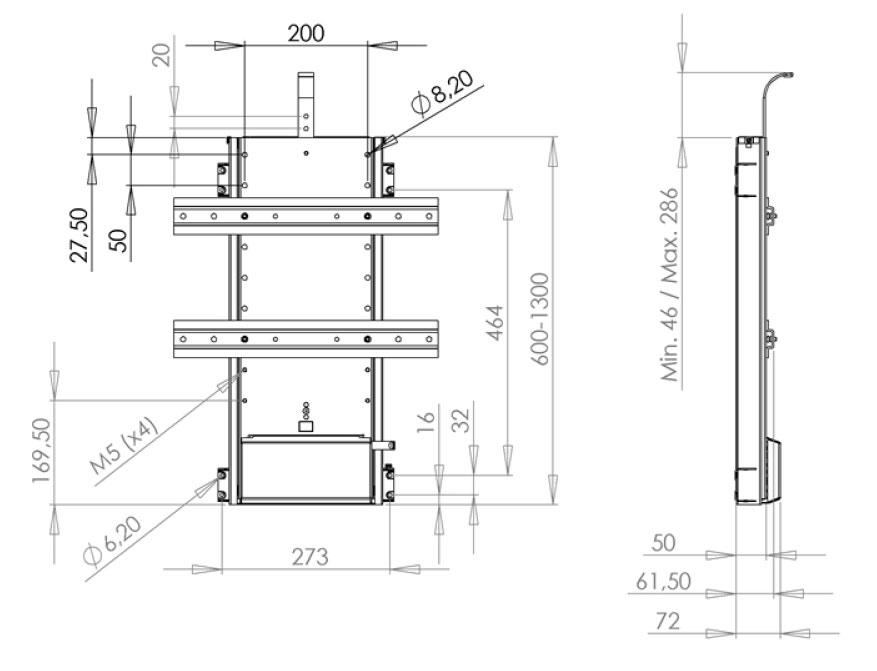

What is the total height of the lift (including the lid opener). Also; can the lid opener height be adjusted? If so, what are the various heights?
The total height of the lift if 600mm. The lid lifter can be adjusted between 46mm and 286mm above this. See the images above for more information and dimensions.
Does the noise the lift makes when lifting stop when it reaches its desired height and is holding the tv up and can the lift stop at a desired height or does it have to lift to its max height? Thanks.
The noise stops when the lift is not moving, i.e. it has reached it's desired height.
