AV4-LF1000 Flat Screen Lifting Mechanism 1000mm Lift / Travel

inc VAT £549.00
Maximum quantity available reached.
Sku: LF1000
     FREE Delivery 1-3 Working Days
27
deliverypromise
Product Description

With the LF1000 you can hide your TV away in a TV Cabinet, behind a taller cupboard, a bed-end or even above your ceiling. Suitable for lifting or lowering, the LF1000 is simple to install and with its "plug and play" connectivity it can installed by DIY enthusiasts and professional installers and cabinet makers alike. The lift includes a lid lifter bar which can be fitted if required. We are always pleased to discuss individual projects and may be able to offer suggestions on construction and integration that we have learned over many years of working with TV Lift mechanisms.

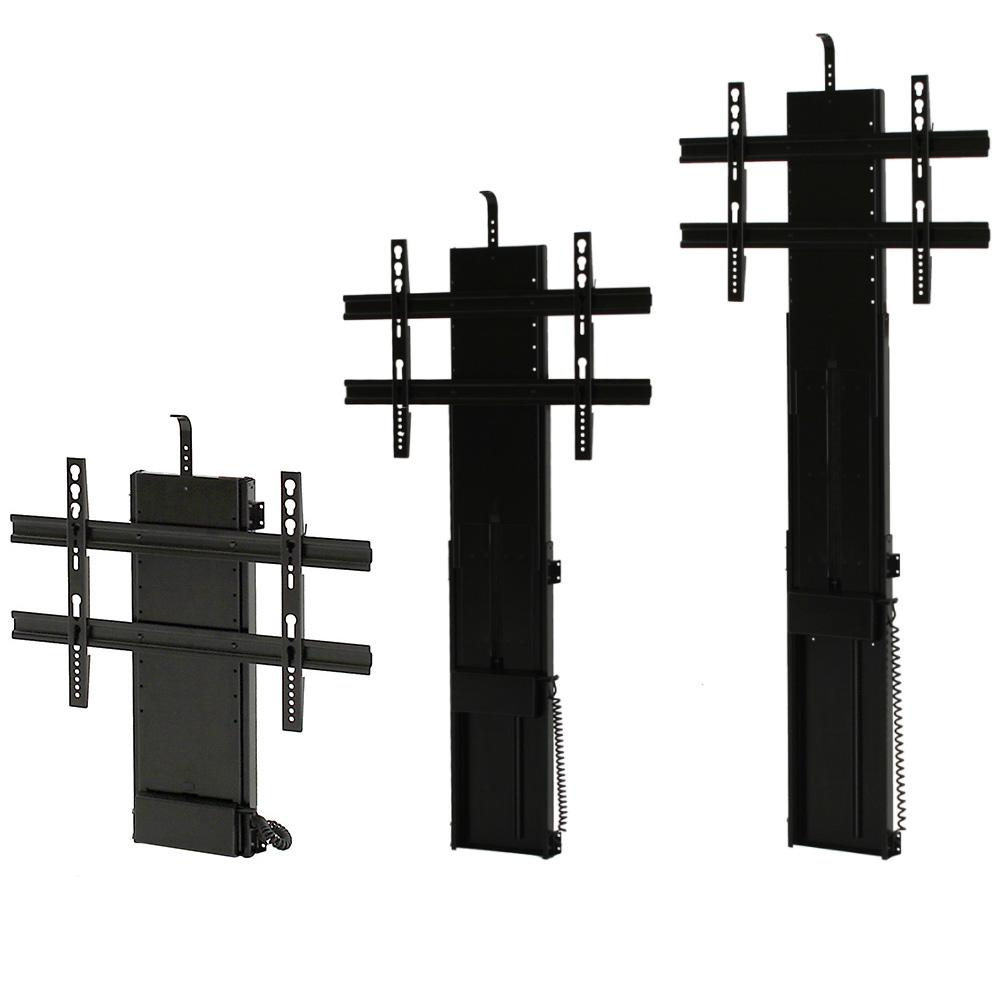

The new LF1000 TV lift has 1000mm of travel. This means it is suitable for LED/LCD/plasma screens that have an overall height of approximately 950mm, (allowing 50mm for clearances and thickness of cabinet top. It is therefore suitable for up to 65 inches TV's, subject to weight and provided the TV overall height without its stand and the clearances you require for your project / construction total less than 950mm.

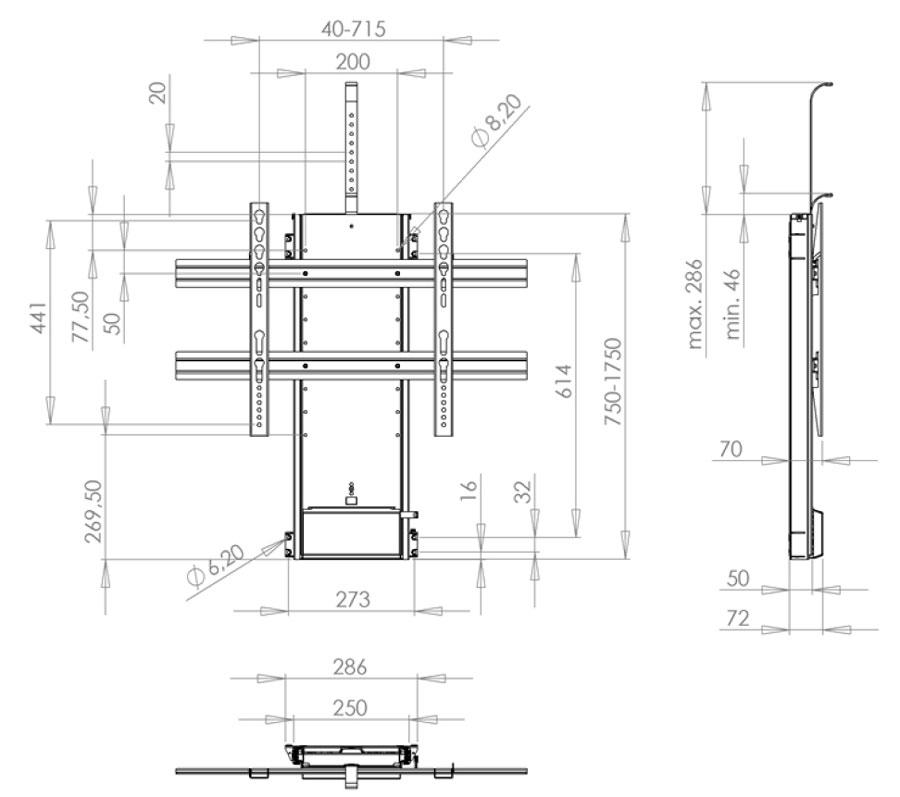

A major feature of this TV lift is that it requires a build-in height of only 750mm. When designing your cabinet we recommend allowing at least 820mm internal height to allow for tolerance on screen mounting position and lid lifter,  makes this unit usable for installation almost everywhere. This is particularly useful when used with smaller screens allowing installation in more compact cabinets. In these instances, the stroke of the lift can also be adjusted to limit the stroke height as the lift has both adjustable lower and upper limit switches enabling you to set the lower and upper start / stop points to suit your installation.


The TV lift includes a manual switch to operate it and a Radio Frequency (RF) remote control that allows easy control of the lift, no line of sight between remote and receiver is required and the working range of this remote is up to 15m.

The LF1000 TV lift is capable of raising an LED, LCD or Plasma screen of up to 65 kg, and if inverted to "lower" a TV it can handle screens up to 29Kg, at a touch of a button. The Maximum peak load is 100Kg; this includes the instantaneous load applied to the lift at the point of opening the lid of a cabinet... Its maximum travel is 1000mm. (Consider the overall height of your screens and add allowance for thickness of cabinet lid etc when deciding if you need a lift with a longer stroke).

The new LF1000 TV lift features an important safety feature in the anti-squeeze function. If the moving parts of the lift or the TV mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse. The pressure given before reversing is equal to the weight of the TV that is mounted.

The LF1000 TV lift can also be inverted and used to lower a TV screen (Max Weight upto 29Kg) out of the ceiling or other void.[Important Information about Safety and Installation]

This TV lift include an RF remote control, however if you would prefer an IR remote control instead, there is an upgrade available to an Infra Red (IR) remote control. The IR remote controller options is useful if you are controlling the lift via a programmable multi-device remote control with learning capability or a home automation system such as Crestron, AMX etc Please call us on 01623 672070 if you are interested in this option.

Here are a few key factors to consider that distinguish this TV lift from other lifts.

  • Fits VESA 600x400, 600x200, 400x400, 400x300, 400x200, 400x100, 300x300, 200x200, 200x100
  • Unloaded Lifting speed: 28mm per second (Full extension in approx 35-40 seconds).
  • Unique stability system.
  • Maximum TV weight 65Kg (29Kg when used inverted) [Important Information about Safety and Installation]
  • Maximum peak load of 100Kg
  • Power supply: 80 W AC SMPS Power Transformer - Input 200V-240V - Output 30V
  • With design, engineering and quality inspection done in Denmark, the volume manufacture is in China - hence its very competitive pricing.
  • The electronics and Wireless remote are hard to beat.

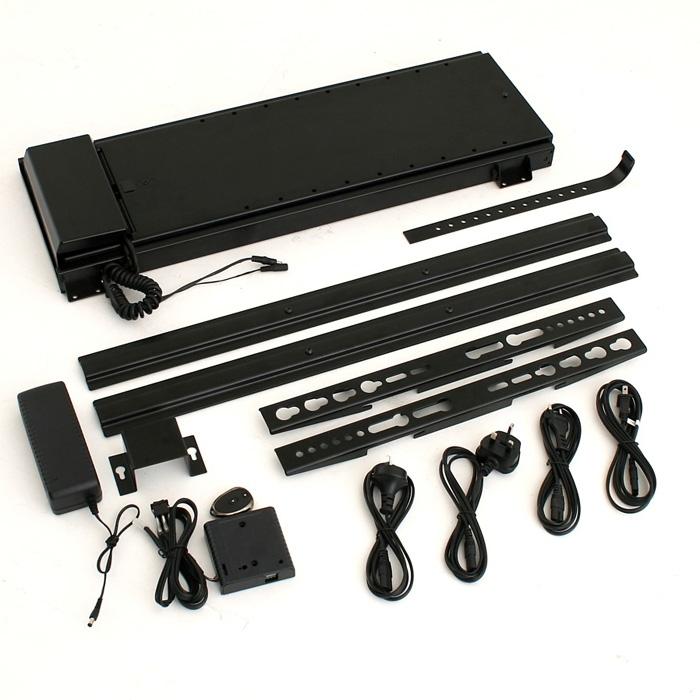

  • Modular construction with motor, Power Supply and electronic module, (with included optional manual switch), all plug-in connections.
  • Very easy to install
  • With over 2 years of volume production, this manufacturer has experience and know-how that will ensure peace of mind on reliability.



The AV4-LF1000 (also known as the Venset TS1000A) can be used to automate many items around the house in addition to its function as a TV-lift. A wide array of applications throughout the home and office are possible as well, particularly in the area of developing innovative solutions for those with physical disabilities.

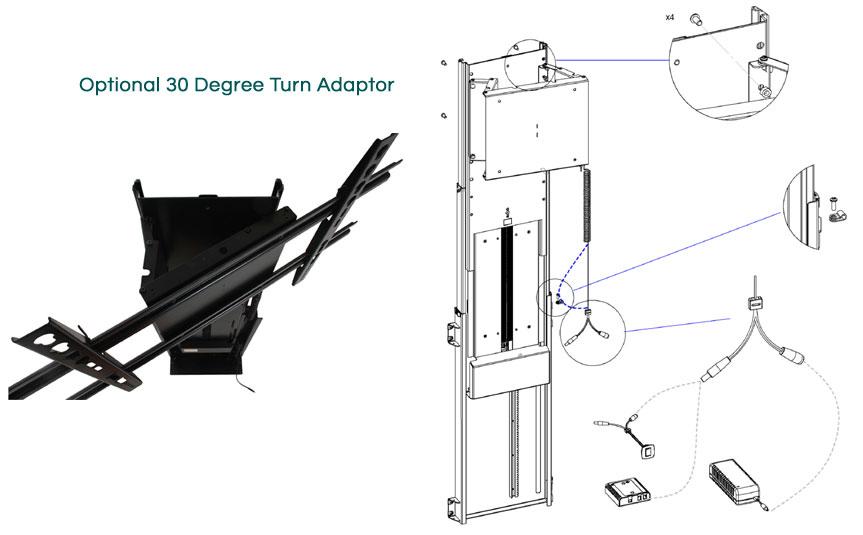

Optional 30° Swivel Adaptor
Select this option if you would like to be able to turn the screen up to 30 degrees left or right. The adaptor has a clever cut off switch included so that the lift will only operate when the screen is in a safe position to be operated. The swivel adaptor is 30mm deep when closed and 265mm when extended. The swivel adaptor can be used when the lift is inverted. [Important Information about Safety and Installation]The swivel adaptor is suitable for use with TV's up to 15Kg.  The swivel adaptor is suitable for use with TV's up to 15Kg.



Optional Power Cut Off Lid Switch
Select this option to add the power cut off lid switch to your order. This simple to install switch will cut the power to the TV when the switch is closed. This is useful when installing the lift in a cabinet as the TV cannot be accidentally left on inside the cabinet. Once the switch is released the power is automatically returned to the TV.



Universal Screen fixing kit
NO screen fixing bolts are included with this mount so this pack saves you having to search for the ones you need. Contains full range of bolts and spacers to ensure easy mounting of a wide range of screens - particularly useful for Sony Bravia and Panasonic Viera range screens that often require longer bolts and spacers. We suggest you buy these - if you don't use them - you can return them for a refund on the option cost. See options.



Optional Floor / Ceiling Bracket [Important Information about Safety and Installation]
There is now an optional floor bracket / ceiling bracket for this TV lift. This can be used to mount the TV lift to the floor or ceiling i.e. not against a wall or in a cabinet or when the lift is not going to be mounted using the fixing holes in the rear of the TV lift. It holds the TV lift securely in place and allows mounting to a floor or ceiling through the fixing plate. This bracket can be found here.

Customer Reviews

Based on 27 reviews
5 ★
100%
27
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review
  • Reviews

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

TC
07/05/2019
Trevor C.
United Kingdom

Great piece of kit!

We just renovated our bedroom and wanted a TV in the room but had no walls for it to hang from and didn't want one of those beds with it hidden in the footboard. Spotted this neat piece oif kit via Googling and went for it when it appeared in the sale. It is very well made indeed and works so smoothly both via the fob and wired rocker switch. So we now have a 50 inch 19KG slimline TV which drops from the ceiling at the foot of the bed. Highly recommend.

IH
13/09/2018
Ian Hardee

Delivery was prompt and in accordance with instructions, staff tried to be very helpful with technical queries on the phone (I didn't get the answer but they pointed me in the right direction, and were very willing)

Slightly opaque instructions for the floor mount, but otherwise easily installed and works well. Would be good if it had a "tilt" adjustment, but all the same I am very pleased

SK
21/07/2018
Szigeti Kata

Good and helpful company.

Good and helpful company.

AD
09/06/2018
Andrew Day

Great customer service. Quick delivery They really know what there talking about. Would use them again.

Great customer service. Quick delivery They really know what there talking about. Would use them again.

ME
09/05/2018
Marin Ercegovi?

I would definetly buy again. Great costumer service. Explained everything in detail!

I would definetly buy again. Great costumer service. Explained everything in detail!

Free UK Mainland Delivery

We offer free delivery on all items on our website.

How to find out when your order can be delivered
On the product page there is information showing you the delivery time scale for that specific item.

Delivery Time and Service explained
All prices on our website include VAT and free shipping to UK mainland addresses on all orders. For most items this is usually a 1 to 3 working day service. Some items can be delivered using a next working day service. Delivery options will be displayed in our Secure Checkout if the service is available for the item(s) you are purchasing. We will always notify you by email when your order is dispatched and let you know what day it will be delivered.

Free Day of Choice Delivery
Most products on our website allow you to choose your preferred day for the delivery to take place. You can choose any working week day for delivery. Add the product to your basket and enter the required date in the basket page. If for any reason we are unable to deliver on the date you have requested, we will contact you to discuss how we can arrange a convenient delivery.

Additional Delivery Information
Please note that for many items, such as those from BDI, Spectral, Optimum International, Salamander and others, delivery times and the delivery service offered vary and such are fully detailed on the items individual webpages.
We reserve the right to request payment of any additional delivery charges that might be appropriate to Islands outside of the Mainland UK, Highlands of Scotland, Northern Ireland and EU destinations.

When delivery is requested to business premises, please ensure you provide specific details about where / how the delivery will be received & signed for; e.g. "please deliver to reception" or "please deliver to goods inward". Please also advise if any there are any limitations on your business opening hours.

If our delivery company fails to deliver your order by the expected day / time, we will of course refund any additional delivery charges that you have paid.

We cannot accept any responsibility for any consequential loss or costs that you might incur as a result of late delivery, regardless of the cause. We will of course apply all possible efforts to resolve any delay in delivery to ensure that you receive your order at the earliest possible time.

Items are shipped according to weight. Lighter items with value less than £35.00 maybe shipped by first or second class post. This is not a traceable service and maybe subject to postal delays so customers are always provided with shipping options that are more assured.

Items over £35 and up to 30Kg are usually shipped using DPD (www.dpd.co.uk). This service will provide an estimated hour time slot for delivery and you will receive notification of this allocated slot by email or text message. This service is free to UK mainland customers.

Larger, heavier items are dispatched using one of our other delivery services. Our delivery services will require a signature upon receipt for proof of delivery and can arrive between 8am and 6pm on the day of delivery. We will contact you by phone or email to arrange a convenient date for delivery and then we will usually send you an e-mail on the evening of dispatch that will confirm to you that your order has been dispatched and the delivery service used with links to tracking facilities if appropriate.

Highlands and Islands of Scotland
Deliveries to the Highlands and Islands of Scotland may be subject to a delivery surcharge and longer delivery times, we will contact you to discuss this if applicable to your order. Alternatively please contact us on 01623 672070 if you wish to discuss this prior to placing your order.

Specialist Delivery
Specialist Furniture delivery services only apply as described on the specific item web page. They are designed to ensure a high level of service, co-coordinating the delivery with you to ensure you are available to take delivery. If your delivery situation is difficult, for access, parking, not at ground floor level etc. please call us at time of order to ensure we know of these difficulties. We can then ensure such difficulties do not delay your delivery.

Failed Delivery Attempts
If the delivery company cannot deliver the item because no-one is home to receive the order, they will leave a card with a contact number detailing how YOU can contact them to arrange a more convenient delivery date. You must contact the delivery company within 24 to 48 hours. If the carrier receives no contact from you they will return the package to us after a period of approximately 5 working days. This may result in extra shipping costs being incurred for the items return to us and to then arrange redelivery.

UK Overwater Service
UK overwater addresses are not included in our free delivery service, once in the checkout, click on the shipping box to select UK Overwater as your class of shipping service, this will display the shipping charge applicable to the weight of your order. This service will usually takes 1-2 working days, it includes shipping to the following locations, Northern Ireland, Scottish Isles, Sicily Isles, and the Isle of Wight. We currently do not ship to the Channel Islands.

Collection
If you place your order online or by telephone you may select the option "Reserve and collect" so that you can collect your order in person from our warehouse. Orders can be collected during business hours between the hours of 9.00am and 5.00pm Monday to Friday or on Saturday's (check website for opening hours).

Please call to confirm stock allocation before coming to collect.

Shipping to European Union (including Ireland)
This service will take approximately 3 working days to arrive and includes shipping to the following countries:- Austria, Belgium, Czech Republic, Denmark, Estonia, Finland, France, Germany, Hungary, Ireland, Italy, Latvia, Lithuania, Luxemburg, Monaco, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Sweden and Spain

In our secure checkout, select the required country and click on the next button. The checkout will calculate the shipping charge relative to country and weight of the order.

European shipping excludes furniture products and any products with glass content.
Orders over 25Kg, for example, mobile trolleys and stands - e-mail us for shipping quotation.

We charge VAT at UK rate - This is not deductable from invoice. Business customers with VAT registration can reclaim this VAT in the normal way.

All orders shipped overseas, should any import tax or duty become payable, this is the responsibility of the importer, (not usually applicable within the EU)



Returns Policy



If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy:-


Please call us on 01623 672070 first to discuss why you may wish to return an item and to receive a returns number. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. We have a no quibble returns policy within 30 days of purchase, provided the item is in a re-saleable condition, (i.e unused, unassembled, unmarked and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return.



If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-

Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.



A) If you notify us of your wish to return an item within 14 days of the date of delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.



B) If you notify us of your wish to return an item 15 to 30 days after delivery

Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.



Conditions and Important Notes

ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.



Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.



Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.



This policy only applies to Consumer Customers, not to business.

Questions & Answers

Ask a Question
  • What is the minimum depth required for the wall bracket?

    If you mean the depth of the tv lift itself? then it is 72mm, the depth of the lift where the TV attaches is 70mm,

  • Hello, we are looking to fit a tv inside a cabinet - 83.8cm high x 146 wide. we are hoping to fit this tv inside a unit that is 92cm high by 239cm wide - please can you tell me if the tv will sink close enough to the floor? The bottom of the tv will need to be 10cm or less from the floor when not in use.

    The LF1000 requires 750mm of space inside the cabinet. The TV can be positioned at various positions to suit your requirements, so you can get it as close to the floor as you wish.

  • Sir, what is the actual weight of av4lf1000? I hope you can understand the following, what I had planned to do is to have a shelf( floor level) inside the cabinet which slides out then elevate the TV, lastly because it's in a corner cabinet I need to rotate it 45 degrees approx. I had planned to mount the av4lf on a base which would take care of the rotation. Does this sound viable? Thankyou

    The LF1000 weighs 20Kg. You would probably want to order the optional floor stand so you can mount the lift to your base. The only comment I would add, is that you will have to be aware that the base would need rotating to the correct position before the lift is retracted, if it is not then the lift will try to retract and will damage your cabinet and the TV.

  • Hi ,I plan to install behind a 1000mm wide X 900mm ( height ) X 600mm depth bedroom dressor cabinet. What is the minimum Box dimensions to hide the unit & flap . Does the floor stand need to screwed to make firm? Looks cool product for customised look.I need to cost this before I can make purchase decision and or trip to mansfield.

    The LF1000 is 750mm tall, the depth of the Lift where the TV will mount is 70mm. So you will need to add the depth of the TV. The width of the box will dictated by the TV. There is no flap included with the LF1000 so you will need to incorporate the flap into the cabinet design. The floor stand will require fixing to the floor and cannot be used free standing, alternatively you could fix the lift directly to the rear of the cabinet and then you would not need the floor stand. We have installations of TV lifts on show in our Mansfield Showroom.

  • Hello. Do you have any information on the operating noise level of the LF1000?

    Sorry, we do not have any information on the noise level for this unit. It is not whisper quiet like the Future Automation models, but it is quieter than most lifts we have seen. We have some information in our blog as to how you can install in cabinets and reduce noise levels.

  • Does this come with the cabinet as shown in the picture

    We just sell the lifting mechanism so you would need to contact a local cabinet maker.
