Multibrackets Motorised TV Wall Mount for screens up to 60 inch
The Multibrackets Motion motorised TV wall bracket is nothing less than a remote controlled, motorised wall mount for LED TV, LCD TV and Plasma TV. The TV Bracket can turn your TV up to 90 degrees and is perfect for maximizing space. When the TV is not in use the bracket can lie flat against the wall. When activated, the bracket will silently swing out to 90 degrees, or you can save a preset position. When you have finished watching the TV, simply press a button on the remote control and watch it swing safely back against the wall. It can be installed on the wall to open left or right to suit every requirement. This TV bracket has its own remote control, it can also cleverly learn from one of your existing remote controls so you dont have another remote control to worry about. You can program any button on your current remote control to work with the bracket. Please note, most TV remotes will work with the bracket, but we are unable to guarantee compatibility. In these cases the remote control supplied with the bracket will be used to control the bracket.
This motorised electric TV wall bracket requires a standard UK power socket. It comes with a plug top transformer that has 1.8m of flexible cable attached to plug into the wall bracket. The Multibrackets motorised wall mount will suit most TV screens from 32" up to 60" and weight up to 30Kg.
- Suitable for TV's from 32" up to 60" (Maximum Width of TV - 1370mm) and up to 30Kg.

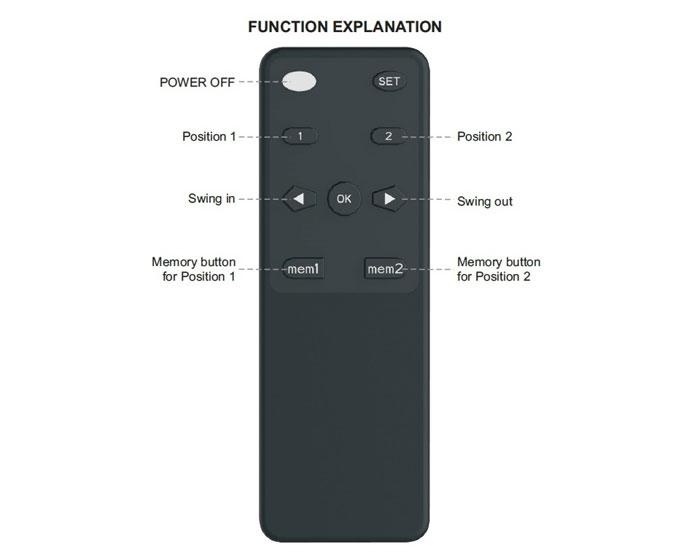

- Includes Remote Control and can also work with your existing remote
- Universal mount fits most sizes and brands
- Built-in Safety Cut Off
- 90 degree rotation, move your TV not your furniture.

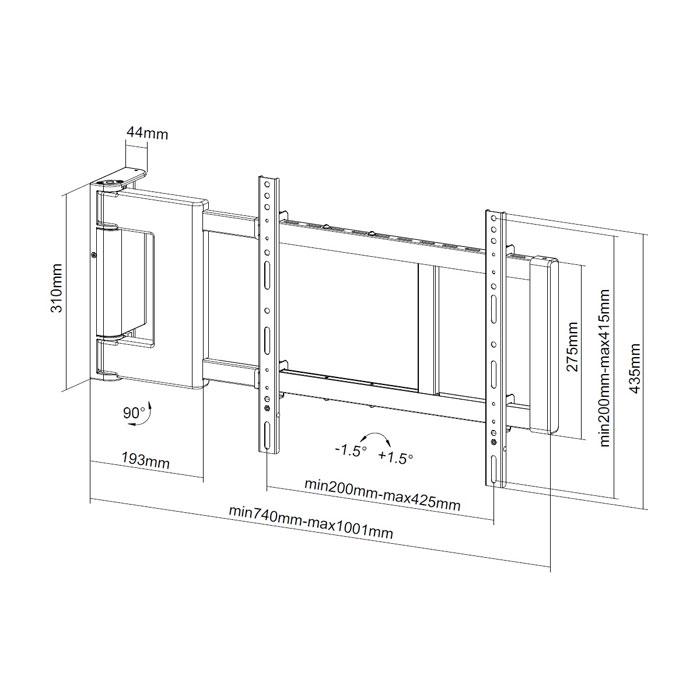

- Slim solution, mounting the screen only 47mm from the wall.
- Easy to mount
- Preset memory to save ideal viewing angle
- All required fixings for TV and wall are included.
- 12 Months Manufacturers Guarantee
Frequently asked questions
Does this TV bracket require a mains socket?
Yes. The bracket requires a standard UK mains outlet to plug into. The included power adaptor comes with 1.8m of flexible cable attached so you can route the power cord within the wall, within cable trunking or simply coil it up behind the TV.
Does this bracket tilt up or down?
No. This TV bracket does not offer any tilt up or down
Is it a noisy bracket?
No. The bracket is very quiet, almost Silent.
Are there adjustable movement limits?, Can I adjust how far the bracket turns out from the wall?
The bracket can be stopped at any point as it moves out to the maximum 90 degree position, so you can position the screen as required.
What if I want the bracket to swing out from the wall the other way round to the picture?
Simply install the bracket the other way round.
Can I control this TV bracket with my TV remote control?
Yes. This bracket has its own remote but it can also learn from one of your existing remotes. Set up is very simple and quick and means that you dont have another remote control to worry about losing.
Great in the space allocated. It is not a quiet as it is made out to be but that isn’t a problem. Works well & pleased with it.
Faulty unit replaced.
Really useful mount. Motorised mount moves TV back against the wall when not in use, but TV can move to viewing position in seconds. "Does what it says on the tin".
I love this bracket, it was very easy and quick to install and it looks great.
Love it. Easy to install. Easy to setup.
Coronavirus (Covid-19) Information for Customers
As a result of the on-going Coronavirus (Covid-19) outbreak and based on current available advice, we are making some changes to the way we work to protect both our employees and customers. This page will be updated to reflect our current service availability as the situation progresses.
Dispatch and Deliveries
We will continue to dispatch orders as normal. This includes arranged delivery services. We do not anticipate any dispatches will be affected at this time
Free UK Mainland Delivery
We offer free delivery on all items on our website. Orders placed before 2pm on a weekday can be delivered on a FREE Next Working Day service. You will be able to select the delivery options in our secure checkout. See information below regarding choosing a day for delivery.
How to find out when your order can be delivered
At the top of the page above the price there is information showing you the delivery time scale for that specific item.
Tracking my order
Tracking details will be emailed to you once dispatched so you can track the delivery of your order
Free Day of Choice Delivery
Most products on our website allow you to choose your preferred day for the delivery to take place. You can choose any working week day for delivery. Add the product to your basket and on the basket page, scroll down and you will see a text box to enter your preferred delivery date. You will still see the default delivery options in the checkout, but we will use your preferred delivery date rather than the delivery option selected on your order. If for any reason we are unable to deliver on the date you have requested, we will contact you to discuss how we can arrange a convenient delivery.
When delivery is requested to business premises, please ensure you provide specific details about where / how the delivery will be received & signed for; e.g. "please deliver to reception" or "please deliver to goods inward". Please also advise if any there are any limitations on your business opening hours.
If our delivery company fails to deliver your order by the expected day / time, we will of course refund any additional delivery charges that you have paid.
We cannot accept any responsibility for any consequential loss or costs that you might incur as a result of late delivery, regardless of the cause. We will of course apply all possible efforts to resolve any delay in delivery to ensure that you receive your order at the earliest possible time.
If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-
Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.
A) If you notify us of your wish to return an item within 14 days of the date of delivery.
It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.
For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.
For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.
PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.
B) If you notify us of your wish to return an item within 15 to 30 days after delivery
Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.
It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.
Conditions and Important Notes
ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.
Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.
Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.
This policy only applies to Consumer Customers, not to business.
Questions & AnswersAsk a Question
Hi - when the TV returns to the position against the wall, is the bracket fully obscured by the TV so you can't see it? Also, is this bracket suitable for the LG 55SM8600PLA? Many thanks, Matt
Yes, you will be able to cover the bracket with the TV so that you cannot see the bracket from the front when the bracket is retracted. This bracket is compatible with your TV.
Can the home position be pre-set when the tv is turned off or does it always go back to the wall flat?
The home position is always flat to the wall.
Hi, will this bracket fit a Panasonic LED TV VIERA TX-50DX750B? Thanks Jay
This bracket is suitable for use with this Panasonic TV
Does this Mount have the ability to be controlled by RS232
Unfortunately not, it can only be controlled via IR
Hi i ment will it work with samsung remote control, thanks
The bracket is known to have issues with the Samsung "Hub" remote. All others are ok
Hello, my dad has a motorised wall mount and swapped out his Samgsung television for a newer model. I programmed the new remote to the motorised mount. It worked perfectly for a few minutes then it stopped responding to the remote control. I disconnected the power to the wall mount for a few minutes and plugged it back in and it still won't work. I have noticed the IR sensor's blue LED is blinking constantly and i don't know what this means. Can you help me? Thank you
Some Samsung remote controls have been known to cause issues with this bracket. Do you have another remote control that you can use to program the bracket. Not a sky remote as these also cause problems.
Just bought this, I have programmed the remote and it works for a day then stops, I then have to re programme this is very frustrating help
Can you please confirm what make and model of remote control you are using. We are aware of some Sony & Sky remotes causing problems
I have changed my TV so the new remote needs programming. I no longer have the instructions and can only find Russian version online!!!! Do you have a link to the manual instructions?
Product manual can be found here - http://multibrackets.com/downloads/mmotorizedswingmount.pdf
Multibrackets Motorised TV Wall Mount for screens up to 55 inch It says it needs mains but also has an adaptor. Does the unit take 12v? Want to put this onto a boat ... can re-wire the end fittings if the unit itself is 12 volt. Thanks
The output from the plug adaptor is 12v.
hi will this bracket fit a SONY BRAVIA KDL50W809CBU Smart 3D 50" LED TV? also is the plug a uk three pin plug?
Yes, your Sony screen is suitable for use on this TV Bracket. The unit is fitted with a UK 3 pin plug.
Is it possible to combine this with another bracket, or add some sort of spacers so I can tilt the TV?
Sorry, we don't have any other brackets that can be used with this one to make it tilt.
Is it possible to set up so that the cables don't hang down like the picture? Is there enough space depthwise to have plug socket and coaxial areial socket behind so it looks clean when the tv is retracted?
Absolutely, the picture is poor for showing the cables like this. Most customers would route the cables down a cable management column or such to keep them out of sight. The depth behind the bracket is 52mm so there should be enough space for power cables and aerial cables behind the TV when the bracket lies flat against the wall.
Hi, will this work with the Samsung UE65HU8500T 65 inch curved TV? it is within the weight limit and I only need it to swivel to 45 degrees
Multibrackets Sweden have said that the maximum width of screen to achieve 90 degrees is 1337mm. If you put a wider screen on the bracket you will still get some turn from the mount, but we are unable to guarantee exactly how far it will turn.
Will this bracket be suitable for the new 55" Samsung curved TV's
All of the new 55" curved tv's from Samsung have the usual VESA fixings on the rear and will be suitable for use with this bracket.
What is the size (depth) of the power adaptor as the plug socket is directly behind the TV on the wall, not below. Will the screen be able to sit flush with the wall with the adapter plugged in?
The depth of the power adaptor is 45mm. This can be concealed behind the bracket in certain positions.
Hi Can someone help me program the motorized bracket
We can offer technical support if you are having difficulty programming the bracket. Please send an email with the issues you are having to email@example.com
Can I mount a sonos soundbar underneath the tv on this bracket so it moves with the tv?
There is no way to mount the soundbar using this bracket alone. However if you use this bracket with our Soundbar bracket then that should work. See the following link - http://www.av4home.co.uk/btech-btv914-universal-soundbar-bracket.html#prodTop
Q: What is the length of the power chord. Can I get chord extension kit?
The power cable is approx 2m in length. There are no extension cables available.
We have a home automation system which works from a tablet, will this unit integrate?
I assume that the home automation system has an IR blaster system to control the various pieces of equipment. If this is the case then it should work as though you are pointing a standard IR remote control at it.
What is the maximum distance it can extend from the wall?
The bracket swings out from one side to the desired position up to 90 degrees. One side of the TV will always remain close to the wall and the other side will swing out away from the wall. The distance depends on the amount you move the bracket.
