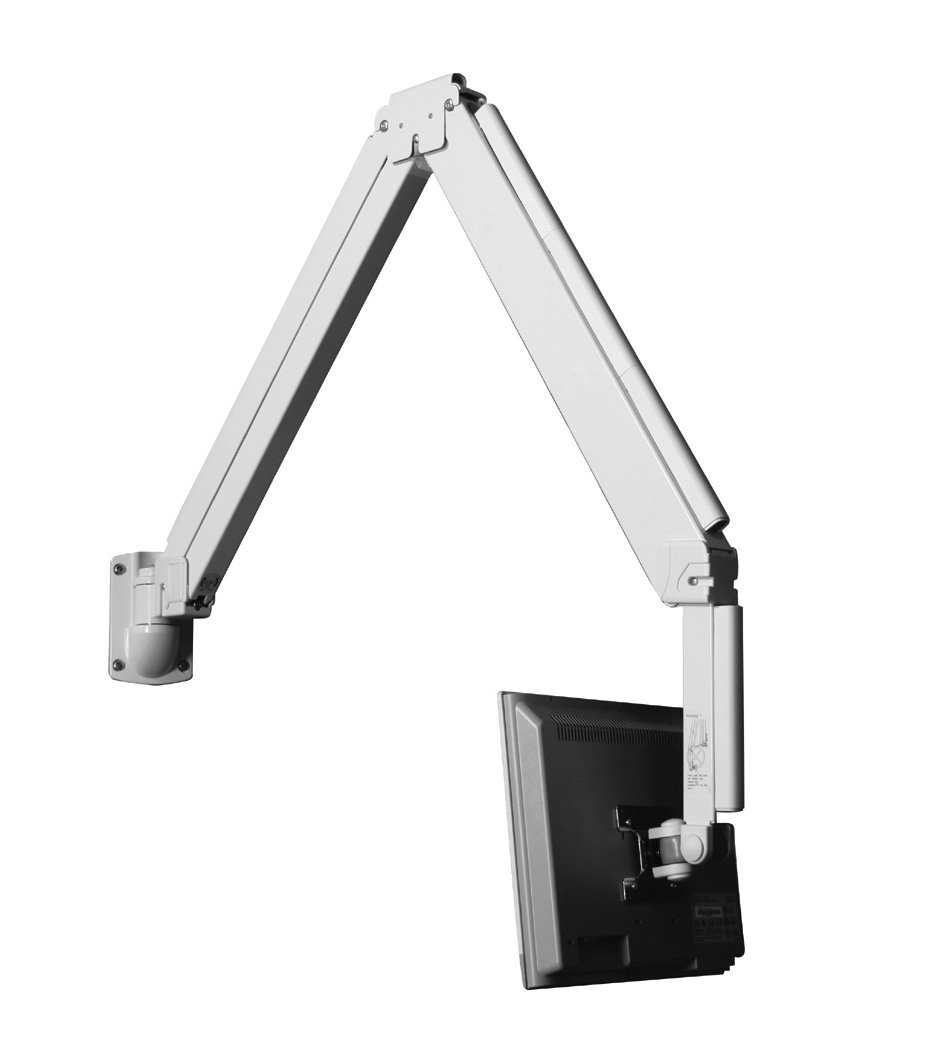

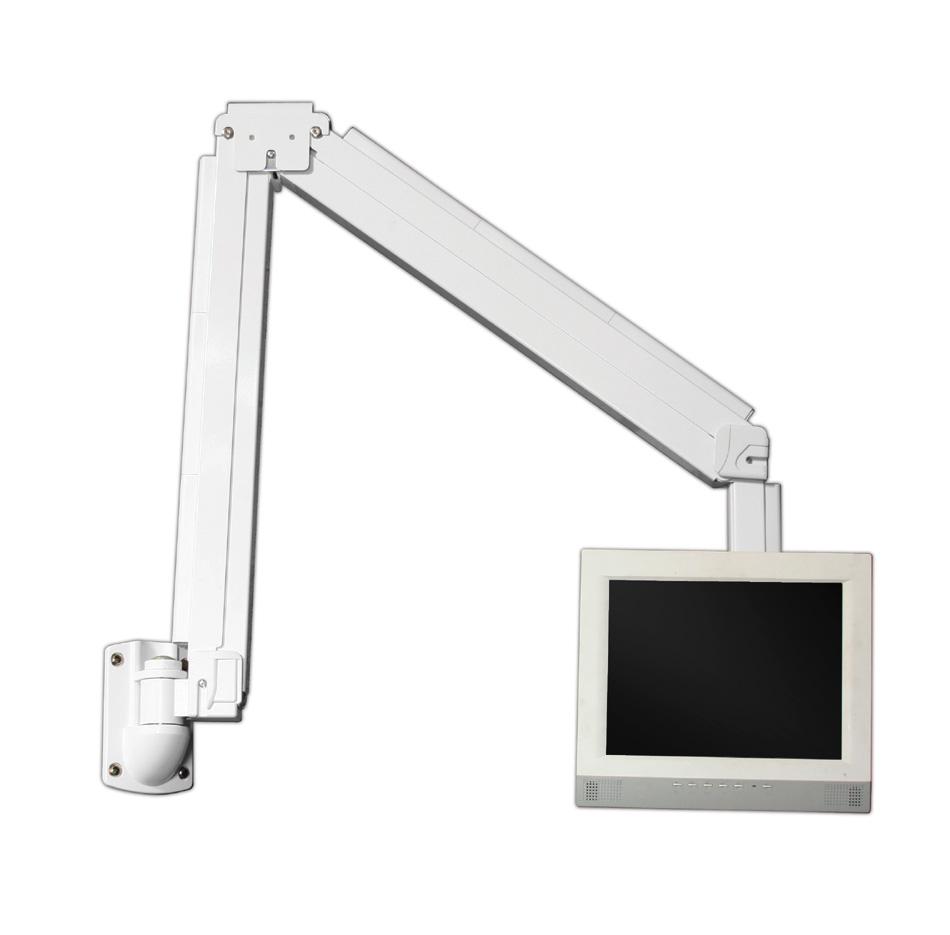

B-Tech BT7593 Full Motion Flat Screen Medical Wall Bracket

Product code: 3475
This product is currently out of stock and expected back in stock on the 31st March 2019, customers who place orders before this date will be contacted to arrange a convenient delivery date once new stock has arrived.
B-Tech BT7593 Full Motion Flat Screen Medical Wall Bracket

Purchase Information

  • Delivery 1-3 Working Days FREE
  • Choose a Delivery Date
(prices inc VAT)
Free Delivery 1-3 Working Days 30 day money back guarantee

The full motion BT 7593 arm allows a TV up to 23 inches in size, to be pushed back and stored tidily against the wall until the TV is required. The TV can then be pulled forward away from the wall up to a maximum distance of 1650mm (65"), and the position adjusted to ensure the person in the bed can have the very best viewing experience. The TV can even be used in landscape or portrait orientations.

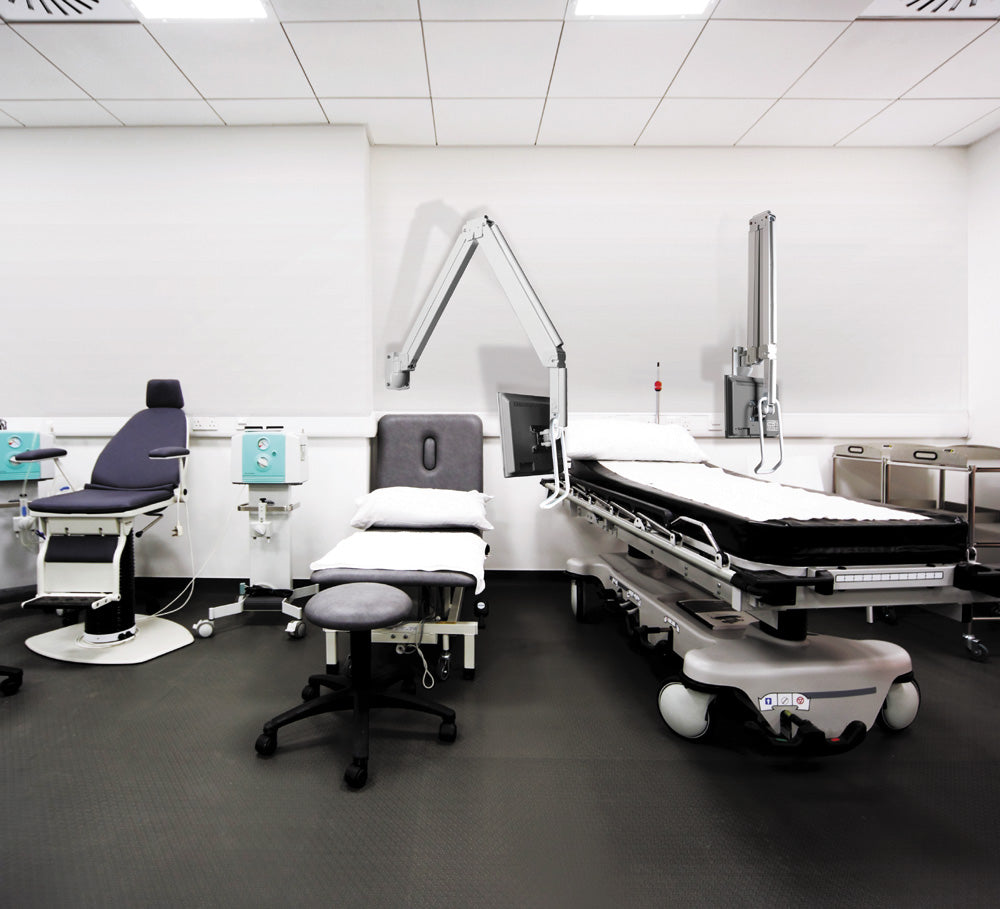

With its 100 degree tilt function, combined with its 360 degree rotation, this extending arm mount really is the perfect hospital or other treatment room option. On top of each arm section is a cable tunnel, allowing all power, data and video cables to be hidden from view. Being manufactured by British manufacturer B-Tech, you can be sure that this heavy duty arm is capable of many years of safe operation; it is supplied with a manufacturer-backed 10 year warranty.

This TV wall bracket is unique due to the amount of extension from the wall that it offers. It can be used in any situation where a large extension is required.

  • Designed for flat screens up to 23" (58cm) between 3kg - 8kg
  • Fits screens with VESA mounting patterns: 75 x 75mm and 100 x 100mm
  • Allows 360 rotation of screen in any direction to display screen in landscape or portrait style
  • Tilts +/-100

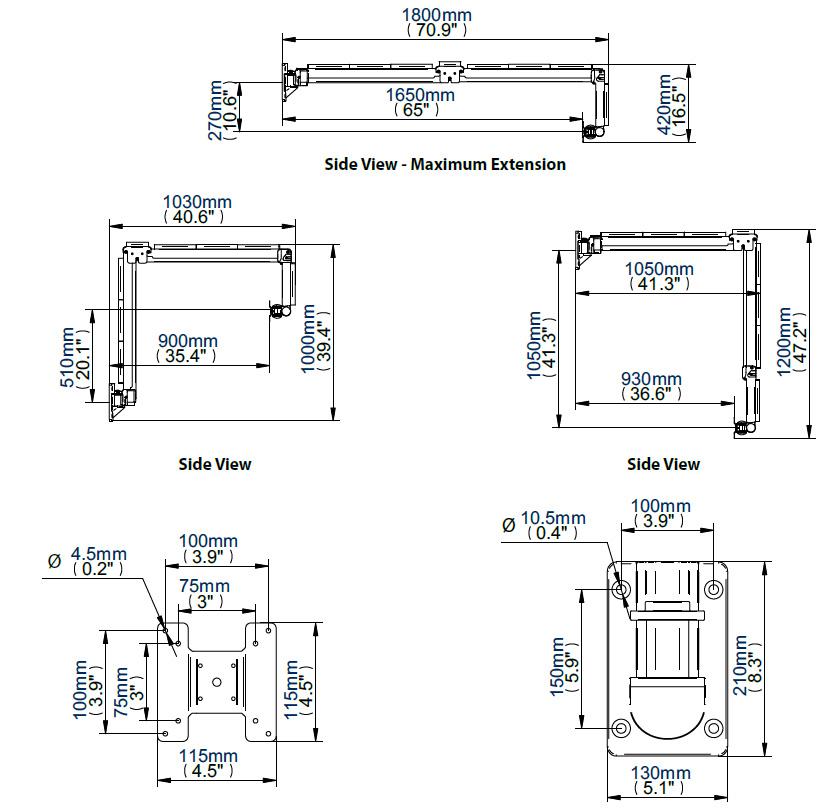

  • Mounts screen up to 1650mm (65") from wall

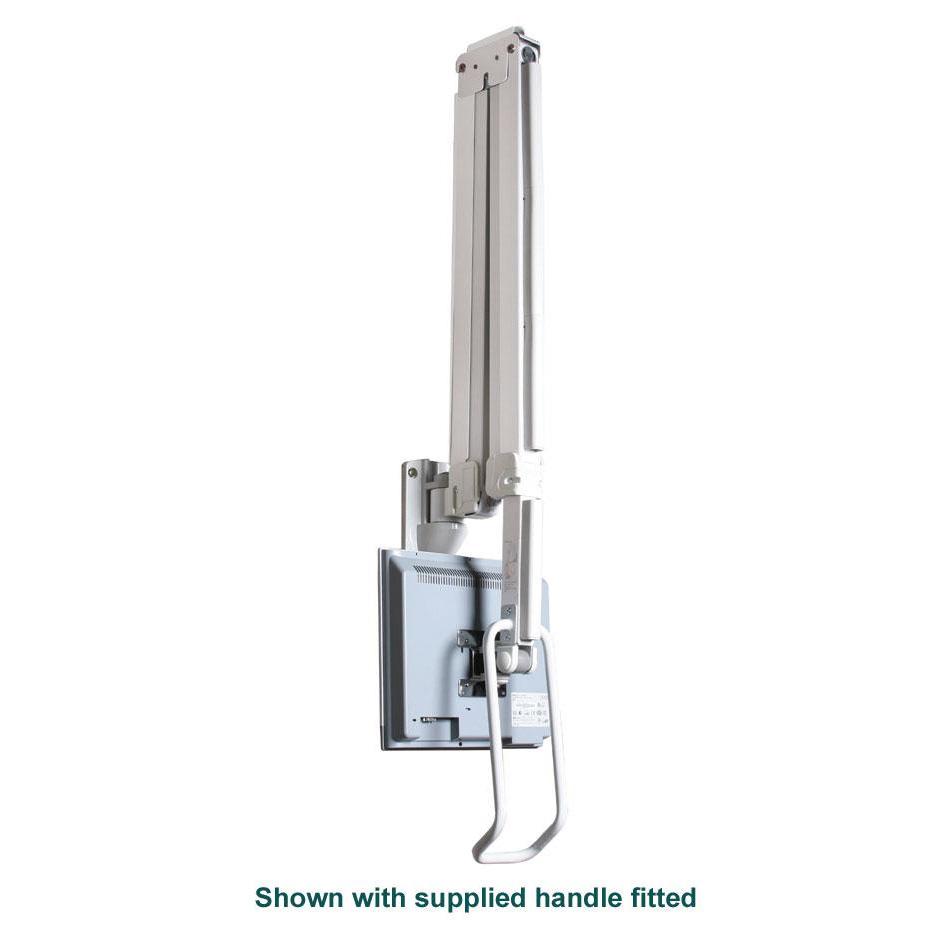

  • Supplied with optional handle for easy screen positioning

Additional Information

TV Size 19" to 23"
Tilt Yes
Turn (Dependent on TV Width) 180 Degrees
Warranty 5 Years
Minimum Distance from Wall N/A
Maximum Distance from Wall 1800mm
TV Bracket Type Double Arm / Pull Out
VESA Sizes VESA 75x75, VESA 100x100
Max TV Weight 8Kg

FeeFo Reviews

Date / Score
Customer Comment Our Response
18-Jan-2017 Service: Product:
The medical arm was very easy to fit and has made a huge difference, very strong construction and the cable tidy tubes are brilliant as no cables hanging around getting tangled up
17-Apr-2015 Service: Product:
Simply excellent.
Read more reviews on Feefo
Q: Could you please tell me if bracket can be moved side ways to make It easier to get out of bed thanks Posted On: 15/01/2017 By: Jeanette
A: There is a pivot at the wall allowing the bracket to be swung left or right 180°, so yes it can be swung out of the way when getting out of a bed.
Q: Needed for a 22 inch TV, where do the electric leads go? How long do they need to be? Bearing in mind this is a standard tv. Posted On: 20/11/2016 By: Nicola
A: The bracket has cable management along the length of the arm to keep cables tidy. You will need at least 2m of cables to go along the arm and into the TV plus the length required to plug into the source device.
Q: hi im looking into buying a mount but i need it for my apple imac i was wondering if i can use your Adjustable Height Swing-out Wall Mount for up to 22 inch TVs for my 21 inch imac if i can would you be able to provide me with some advice as to weather id be able to use it at my house as i am wheelchair confined and most days confined to bed the reason i need some sort of mount is my new house is to small for pc desk/cabinet and so need a mount that can extend from a side wall to the left of my bed as their is not enough room to mount behind my bed as you can understand it's pretty expensive and can't afford to buy this mount without knowing first that it will meet my need thank you for any help David Posted On: 07/02/2014 By: david collins
A: This wall bracket will suit screens up to 6Kg. Check the weight of your imac is less than this. Check on the back of the imac and see if there are four threaded fixing holes that are 10cm apart laid out in a square. Assuming there is and the weight is ok, then this bracket will be ok.
