AV4-LF460 Flat Screen Lifting Mechanism 460mm Lift / Travel

Product code: 1000
AV4-LF460 Flat Screen Lifting Mechanism 460mm Lift / Travel

Purchase Information

  • 6 in Stock
  • Delivery 1-3 Working Days FREE
  • Delivery on: Mon 21st FREE
  • Choose a Delivery Date

RRP: £349.00

Now: £299.00

(prices inc VAT)
Product Options
Data sheet
Free Delivery 1-3 Working Days 30 day money back guarantee

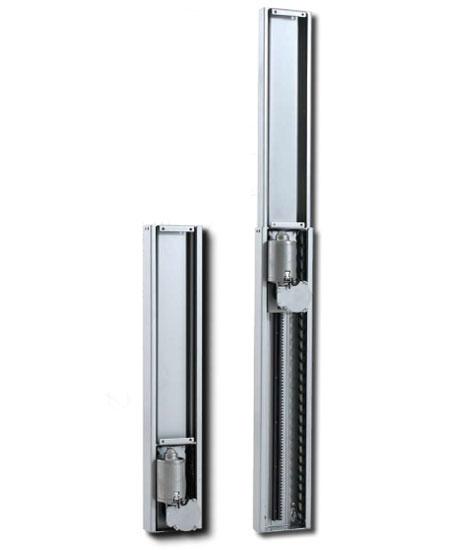

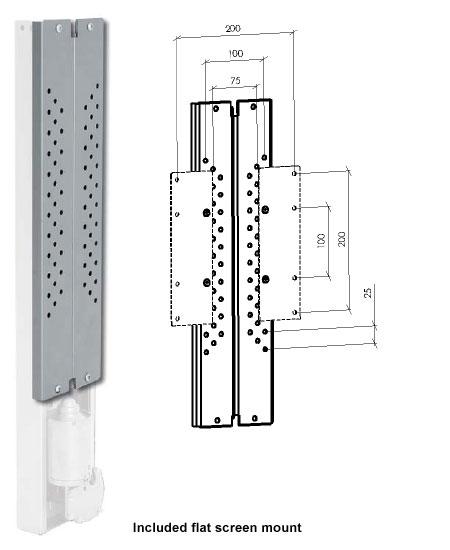

This TV lift mechanism is suitable for use with many 15-inch to 27-inch screens and comes with a RF remote control for easy operation. The LF460 comes with a mounting plate to suit VESA 50x50, 75x75, 100x100, 200x100 and 200x200.

The lift includes a manual switch to operate it and a wireless Radio Frequency (RF) remote control that allows easy control of the lift, no line of sight between remote and receiver is required and the working range of this remote is up to 15m. A manual wired rocker switch is also included.

To ensure compatibility, you need to measure the height of your screen, add to this the thickness of the cabinet lid plus a small tolerance. This will be the minimum amount of travel distance that you need. This lift has 460mm of travel distance. The LF 460 is a small all-round Electric Flat Lift. Usable in many kind of products such as kitchen cupboards, bed ends, office furniture, campers, speedboats and more.


The LF460 TV lift can also be inverted and used to lower a TV screen or appliance (Max Weight upto 29Kg) out of the ceiling, kitchen cupboard or other void.

The LF460 TV lift (also known as the TS460 TV Lift) includes an RF remote control, however if you would prefer an IR remote control instead, there is an upgrade available to an Infra Red (IR) remote control, the IR remote is useful if you are controlling the lift via a home automation system such as Crestron, AMX etc or if you have an existing learning remote control that you wish to use with this lift, please call us on 01623 672070 if you are interested in this option.

Component specifications

  • Power supply: 100 W AC SMPS Power Transformer - Input 200V-240V - Output 30V
  • Consumption: 100 Watts; Standby: 0,01 Watts
  • Lifting capacity: 50 kg

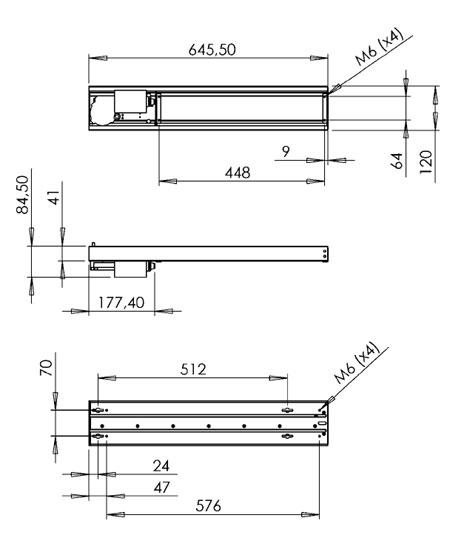

  • Height: 64.5cm - 110.5cm
  • Depth: 4 cm
  • Speed: 25 mm/sec

This tv lift is very simple to install and is plug and play. The few wires that require connecting all have unique plug ends so the correct wire can only be connected in the correct location.

Additional Information

VESA Sizes VESA 100x100, VESA 200x100, VESA 200x200
Warranty 1 Year
Max TV Weight 50Kg
TV Size 15" to 27"
Minimum Height of Lift 645.5mm
Maximum Height of Lift 1105.5mm
Remote Control RF Remote Control
Travel (Amount of Lift) 460mm
Manual Switch Included Yes

FeeFo Reviews

Date / Score
Customer Comment Our Response
22-Jan-2015 Service: Product:
Very, very helpfull assisting me with tech and ship
31-Dec-2013 Service: Product:
Really helpful chap on the phone when ordering - prompt delivery.
11-Jun-2013 Service: Product:
Brilliant helpful and very nice people
14-Nov-2012 Service: Product:
Really good people to deal with service as service should be
25-Oct-2012 Service: Product:
Service rating : Very prompt and friendlily service from Tom on the phone.
Product : Will be installing the 460 tomorrow.

This unit is not for a TV. We are developing a product that might use the 460 or similar lifting unit.

Thank you,

24-Oct-2012 Service: Product:
Lift made noise but we were sent a new one straight away
07-Aug-2012 Service: Product:
Very happy with every part of this order. Both product and delivery. Well done to your company.
Read more reviews on Feefo
Q: With regard to the auto power off option - what is the maximum power this can switch? I'm assuming it switches 240V loads through a 3-pin plug or wired connection - please confirm. Posted On: 09/01/2014 By: iBandit
A: This switch is rated at 10amp –250VAC. This is adequate for the load presented by any current Plasma, LCD or LED TV that could be installed on one of these lifts.
Q: Can you use your lift for a cabinet with a lid? Will the lift open and close the lid or do you need additional mechanisms? Posted On: 09/12/2013 By: Nigel
A: Yes, these lifts can be used with a cabinet that has a rear hinged lid. The lift comes with a metal bracket that will make contact with the lid before the TV does. The lid will close due to gravity as the lift lowers. If you have a different type of lid then you will need to fashion an additional mechanism to use with this TV lift
Q: I want to lift the TV from rear of a cabinet. Will the AV-LF460 do this? I dont want order if this lift is not suitable. Thanks. Posted On: 17/11/2013 By: Susan Forrester-Smith
A: Yes the lift can be fixed to the inside back panel of a suitable cabinet, to lift the TV upwards. If you want to fix the lift to the back – outside of a cabinet, then you would need to design a suitable construction to mount the lift on. If you need further assistance, please do not hesitate to call us on 01623 672070 to discuss – Mon – Friday 9am to 5pm.
